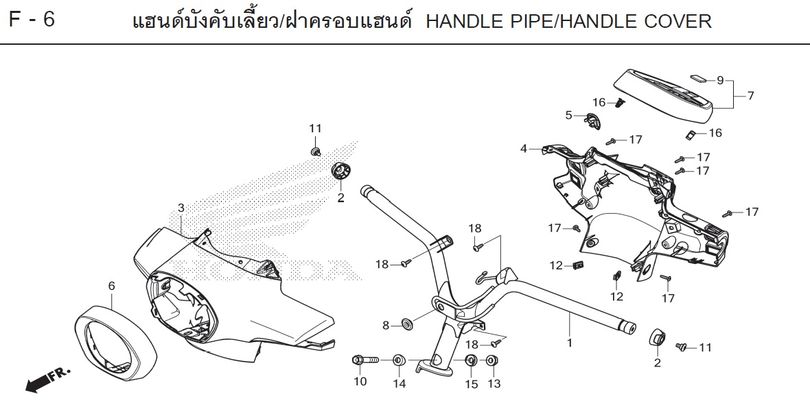

GIORNO 2026 · F-6 HANDLE PIPE/HANDLE COVER

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page F-6

1 HANDLEBAR 53100-K3M-T00Qty per bike: 1
1 HANDLEBAR 53100-K3M-T10Qty per bike: 1
2 CAP, HANDLEBAR END 53102-K66-V00Qty per bike: 2
3 COVER, FRONT HANDLE (GREEN/BLACK) 53205-K3M-T00ZCQty per bike: 1
3 COVER, FRONT HANDLE (YELLOW/BLACK) 53205-K3M-T00ZEQty per bike: 1
3 COVER, FRONT HANDLE (BLUE/BLACK) 53205-K3M-T00ZFQty per bike: 1
3 COVER, FRONT HANDLE (WHITE/BLACK) 53205-K3M-T00ZGQty per bike: 1
3 COVER, HANDLE 53205-K3M-T00ZKQty per bike: 1
3 COVER, HANDLE 53205-K3M-T00ZLQty per bike: 1
3 COVER, HANDLE 53205-K3M-T00ZNQty per bike: 1
3 COVER, HANDLE 53205-K3M-T00ZPQty per bike: 1
3 COVER, FRONT HANDLE (GRAY/BLACK) 53205-K3M-T10ZBQty per bike: 1
3 COVER, FRONT HANDLE (RED/BLACK) 53205-K3M-T10ZDQty per bike: 1
3 COVER, FRONT HANDLE (WHITE/BLACK) 53205-K3M-T10ZEQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZFQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZGQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZHQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZJQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZKQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZLQty per bike: 1
3 COVER, HANDLE 53205-K3M-T10ZMQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZAQty per bike: 1
4 COVER, FRONT HANDLE (GRAY/BLACK) 53206-K3M-T00ZCQty per bike: 1
4 COVER, FRONT HANDLE (GREEN/BLACK) 53206-K3M-T00ZEQty per bike: 1
4 COVER, FRONT HANDLE (YELLOW/BLACK) 53206-K3M-T00ZGQty per bike: 1
4 COVER, FRONT HANDLE (RED/BLACK) 53206-K3M-T00ZHQty per bike: 1
4 COVER, FRONT HANDLE (BLUE/BLACK) 53206-K3M-T00ZJQty per bike: 1
4 COVER, REAR HANDLE (WHITE/BLACK) 53206-K3M-T00ZKQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZLQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZMQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZPQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZQQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZRQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZTQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZUQty per bike: 1
4 COVER, HANDLE 53206-K3M-T00ZVQty per bike: 1
5 CAP, HANDLE COVER (ALL COLORS) 53207-K3M-T00ZAQty per bike: 1
6 CAP, HANDLE COVER (ALL COLORS) 53208-K3M-T00ZBQty per bike: 1
6 COVER, HEADLIGHT 53208-K3M-T00ZCQty per bike: 1
6 COVER, HEADLIGHT 53208-K3M-T10Qty per bike: 1
7 METER HOUSING COVER SET (ALL COLORS) 53210-K3M-T00ZBQty per bike: 1
7 COVER, METER 53210-K3M-T00ZCQty per bike: 1
8 RUBBER, SIDE COVER 83551-376-000Qty per bike: 1
9 MARK, WING 86150-KPG-901Qty per bike: 1
9 MARK, WING 86150-KPG-902Qty per bike: 1
9 MARK, WING 86150-KTJ-C60Qty per bike: 1
10 BOLT, FLANGE, 10x48 (DR) 90102-KZL-930Qty per bike: 1
11 SCREW, SPECIAL, 6 mm 90164-K66-V00Qty per bike: 2
12 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 2
13 NUT, U, 10 mm (FUJI SEIMITSU) 90304-KGH-901Qty per bike: 1
14 COLLAR A, HANDLEBAR MOUNTING 90501-KPH-880Qty per bike: 1
15 COLLAR B, HANDLEBAR MOUNTING 90505-KPH-880Qty per bike: 1
16 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 2
17 SCREW, TAPPING, 4x16 93903-24480Qty per bike: 6
18 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 3
