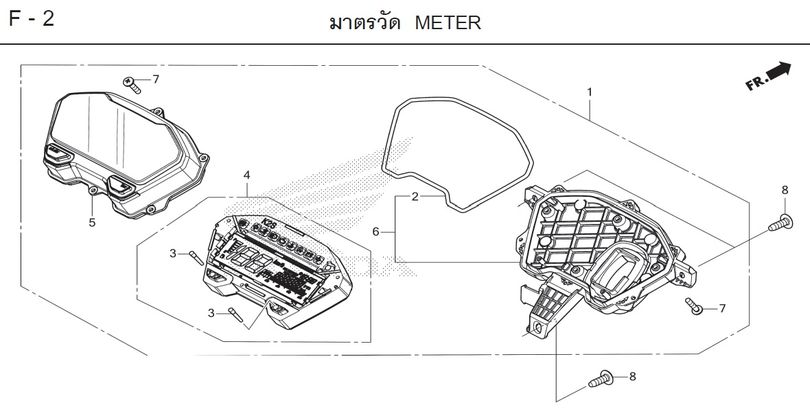

GIORNO 2026 · F-2 METER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-2
- 1 SPEEDOMETER ASSY (KPH) 37100-K3M-T01Qty per bike: 1
- 1 METER ASSY (COMBINATION) 37100-K3M-T02Qty per bike: 1
- 1 SPEEDOMETER ASSY (KPH) 37100-K3M-T11Qty per bike: 1
- 1 METER ASSY (COMBINATION) 37100-K3M-T12Qty per bike: 1
- 2 GASKET 37202-K59-A71Qty per bike: 1
- 3 SHAFT, STROKE ADJUSTING 37203-K59-A71Qty per bike: 2
- 4 PANEL, METER (KPH) 37210-K3M-T01Qty per bike: 1
- 4 PANEL, METER (KPH) 37210-K3M-T11Qty per bike: 1
- 5 COVER, METER 37212-K2S-N01Qty per bike: 1
- 5 LENS, METER HOUSING 37212-K3M-T01Qty per bike: 1
- 6 SPEEDOMETER HOUSING SET 37213-K2S-T01Qty per bike: 1
- 6 HOUSING, METER 37213-K3M-T01Qty per bike: 1
- 7 SCREW, TAPPING, 3x14 90314-KVS-F22Qty per bike: 10
- 8 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 3
This catalogue is shared by: GIORNO 2026. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
