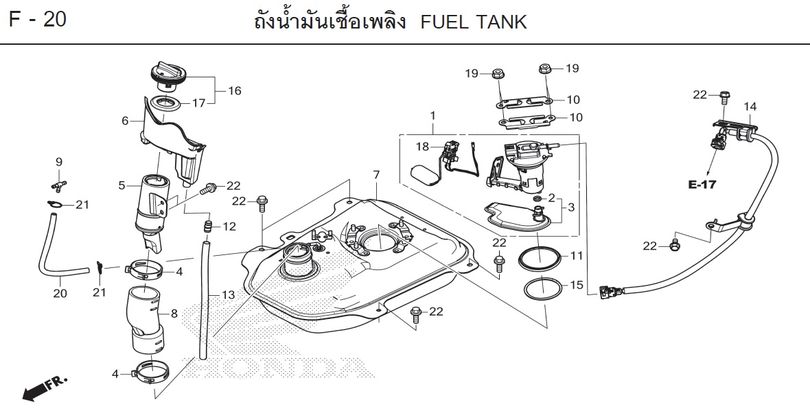

GIORNO 2026 · F-20 FUEL TANK
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-20
- 1 FUEL PUMP SET 16700-K2T-V01Qty per bike: 1
- 2 O-RING (P5) 16706-K0J-N01Qty per bike: 1
- 3 FUEL FILTER SET 16707-K2T-V01Qty per bike: 1
- 4 BAND, HOSE (D49) 17231-K0R-V21Qty per bike: 2
- 5 PIPE, FUEL FILLER 17501-K3M-T00Qty per bike: 1
- 6 PAN, FUEL 17505-K3M-T00Qty per bike: 1
- 7 FUEL TANK 17510-K3M-T00Qty per bike: 1
- 8 TUBE, FUEL TANK JOINT 17511-K12-930Qty per bike: 1
- 9 JOINT, 3-WAY 17515-K12-900Qty per bike: 1
- 10 PLATE, FUEL PUMP MOUNTING 17517-GGL-J00Qty per bike: 2
- 11 SEAL, DUST (OHTUKA POLY-TECH) 17518-GHB-601Qty per bike: 1
- 12 JOINT, FUEL DRAIN TUBE 17525-KBN-900Qty per bike: 1
- 13 TUBE, DRAIN 17526-K3M-T00Qty per bike: 1
- 14 HOSE, FUEL 17570-K3M-T01Qty per bike: 1
- 15 O-RING, FUEL PUMP (ARAI) 17572-GHB-601Qty per bike: 1
- 16 CAP, FUEL FILLER 17620-K35-J02Qty per bike: 1
- 17 GASKET, FUEL FILLER CAP 17632-383-832Qty per bike: 1
- 18 FUEL LEVEL SENSOR SET (FLOAT) 37800-K2T-V01Qty per bike: 1
- 19 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 4
- 20 HOSE, FUEL, 4.5x230 95001-45230-40Qty per bike: 1
- 21 CLIP, TUBE (B8) 95002-02080Qty per bike: 2
- 22 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 8
This catalogue is shared by: GIORNO 2026. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
