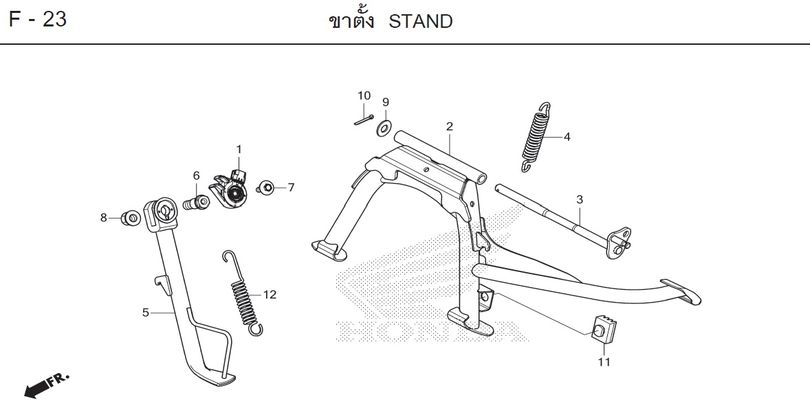

GIORNO 2026 · F-23 STAND
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-23
- 1 SWITCH, SIDE STAND (ENGINE CUT-OFF) (ALPS) 35700-K0J-N01Qty per bike: 1
- 2 STAND, MAIN 50500-K3M-T00Qty per bike: 1
- 3 SHAFT, MAIN STAND 50503-KWN-900Qty per bike: 1
- 4 SPRING, MAIN STAND 50520-KVB-900Qty per bike: 1
- 5 STAND, SIDE 50530-K3M-T00Qty per bike: 1
- 6 BOLT, SIDE STAND PIVOT 90108-KZL-860Qty per bike: 1
- 7 BOLT, SPECIAL, 6x16 90147-KVB-900Qty per bike: 1
- 8 NUT, SIDE STAND MOUNTING 90203-KVB-900Qty per bike: 1
- 8 NUT, FLANGE, 10 mm (PT) 90307-K66-V01Qty per bike: 1
- 9 WASHER, 10 mm 94101-10800Qty per bike: 1
- 10 PIN, COTTER, 3.0x20 94201-30200Qty per bike: 1
- 11 RUBBER, MAIN STAND A 95011-61000Qty per bike: 1
- 12 SPRING A, SIDE STAND 95014-72102Qty per bike: 1
