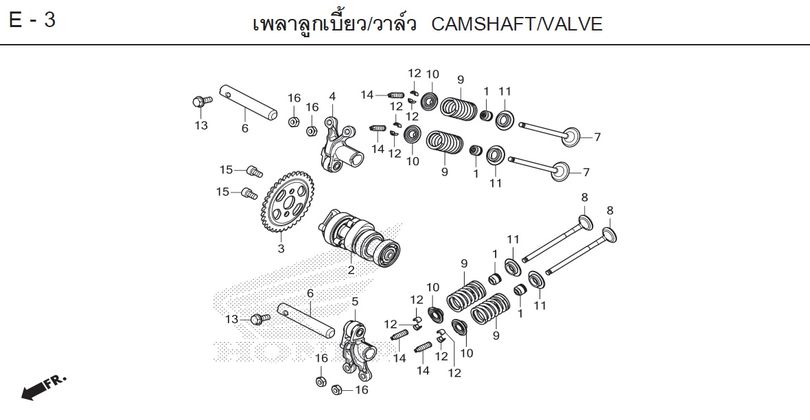

GIORNO 2026 · E-3 CAMSHAFT/VALVE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-3
- 1 SEAL, VALVE STEM (NOK) 12209-K56-N01Qty per bike: 4
- 2 CAMSHAFT 14100-K3M-T00Qty per bike: 1
- 3 SPROCKET, CAM CHAIN (34T) 14321-K0R-V00Qty per bike: 1
- 4 ARM, INTAKE ROCKER 14430-K0R-V00Qty per bike: 1
- 5 ARM, EXHAUST ROCKER 14440-K0R-V00Qty per bike: 1
- 6 SHAFT, ROCKER ARM 14451-K0R-V00Qty per bike: 2
- 7 VALVE, INTAKE 14711-K1Y-DC0Qty per bike: 2
- 7 VALVE, INTAKE 14711-K40-F00Qty per bike: 2
- 8 VALVE, EXHAUST 14721-K1Y-DC0Qty per bike: 2
- 8 VALVE, EXHAUST 14721-K40-F00Qty per bike: 2
- 9 SPRING, VALVE 14751-K0R-V00Qty per bike: 4
- 10 SEAT, VALVE SPRING (INTAKE/EXHAUST) 14772-MGE-000Qty per bike: 4
- 11 SEAT, VALVE SPRING (INTAKE/EXHAUST) 14776-K0R-V00Qty per bike: 4
- 12 COTTER, VALVE 14781-MJE-D00Qty per bike: 8
- 13 BOLT, FLANGE, 5x14 90009-K0R-V00Qty per bike: 2
- 14 SCREW, VALVE ADJUSTING 90012-KWB-600Qty per bike: 4
- 14 SCREW, VALVE ADJUSTING 90012-KYY-900Qty per bike: 4
- 15 BOLT, 5 mm 90083-K40-F00Qty per bike: 2
- 16 NUT, LOCK, VALVE ADJUSTING SCREW 90206-001-000Qty per bike: 4
