GIORNO 2026 · F-19 SEAT/LUGGAGE BOX

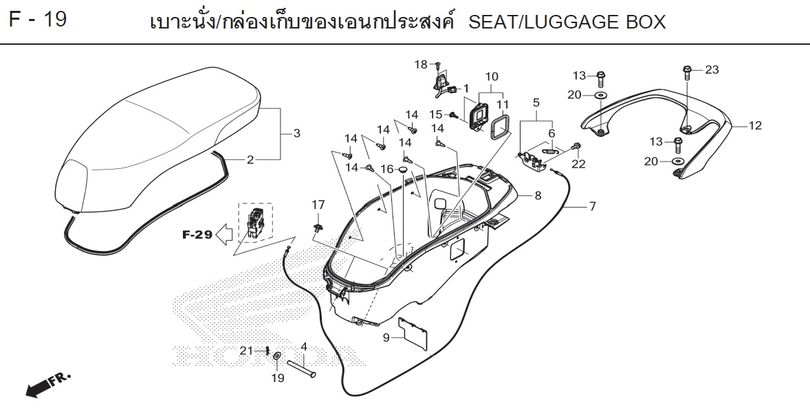

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-19
- 1 TAILLIGHT UNIT 34260-K2T-V41Qty per bike: 1
- 2 SEAL, RUBBER 77115-K3M-T00Qty per bike: 1
- 3 SEAT ASSY (ALL COLORS) 77200-K3M-T00ZAQty per bike: 1
- 3 SEAT ASSY (ALL COLORS) 77200-K3M-T00ZBQty per bike: 1
- 3 SEAT 77200-K3M-T90ZAQty per bike: 1
- 4 PIN, SEAT HINGE 77215-KZL-930Qty per bike: 1
- 5 SEAT LOCK SET 77230-K3M-T00Qty per bike: 1
- 5 SEAT LOCK SET 77230-K3M-T01Qty per bike: 1
- 6 SPRING, SEAT LOCK SET 77234-KYZ-900Qty per bike: 1
- 7 CABLE SET, SEAT LOCK 77240-K3M-T01Qty per bike: 1
- 8 BOX, STORAGE 81250-K3M-T00Qty per bike: 1
- 8 BOX, STORAGE 81250-K3M-T70Qty per bike: 1
- 9 FLAP, MUD 81257-K3M-T00Qty per bike: 1
- 10 COVER, STORAGE BOX 81262-K3M-T70Qty per bike: 1
- 11 SEAL, INNER COVER 81291-K3M-T70Qty per bike: 1
- 12 RAIL, REAR GRAB (GRAY/BLACK) 84100-K3M-T00ZCQty per bike: 1
- 12 RAIL, REAR GRAB (RED/BLACK) 84100-K3M-T00ZEQty per bike: 1
- 12 RAIL, REAR GRAB (WHITE/BLACK) 84100-K3M-T00ZFQty per bike: 1
- 12 RAIL, REAR GRAB (ALL COLORS) 84100-K3M-T00ZGQty per bike: 1
- 12 RAIL, REAR GRAB 84100-K3M-T00ZKQty per bike: 1
- 12 RAIL, REAR GRAB 84100-K3M-T00ZMQty per bike: 1
- 12 RAIL, REAR GRAB 84100-K3M-T00ZPQty per bike: 1
- 12 RAIL, REAR GRAB 84100-K3M-T00ZQQty per bike: 1
- 13 BOLT, FLANGE, 8x30 90078-MKC-A00Qty per bike: 2
- 14 CLIP, RUBBER SEAL 90116-K2P-V61Qty per bike: 6
- 14 RIVET, 6 mm 90116-K3V-N01Qty per bike: 6
- 14 CLIP, LOCK 90116-SP0-003Qty per bike: 6
- 15 RIVET, 6 mm 90116-K3V-N01Qty per bike: 2
- 16 PLUG, HOLE (ALL COLORS) 90656-GCC-000ZCQty per bike: 1
- 17 BOLT, WASHER, 6x12 93404-06012-07Qty per bike: 2
- 18 SCREW, TAPPING, 4x16 93903-34480Qty per bike: 2
- 19 WASHER, 8 mm 94101-08000Qty per bike: 1
- 20 WASHER, 8 mm 94103-08700Qty per bike: 2
- 21 PIN, COTTER, 8 mm 94251-08000Qty per bike: 1
- 22 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 2
- 23 BOLT, FLANGE, 8x25 95701-08025-08Qty per bike: 1
