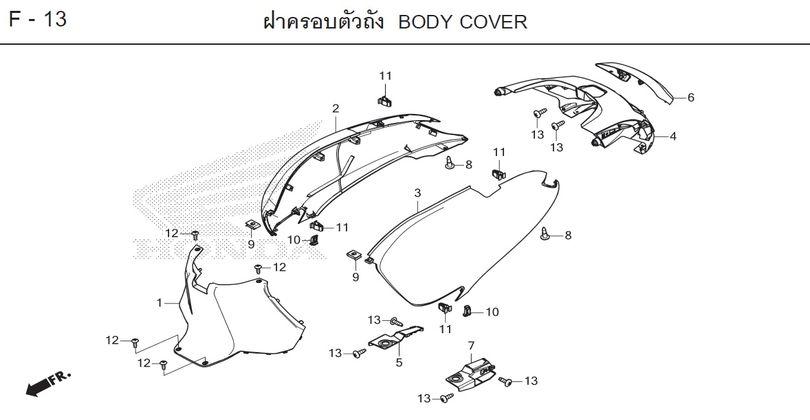

GIORNO 2026 · F-13 BODY COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-13
- 1 COVER, CENTER (ALL COLORS) 80151-K3M-T00ZAQty per bike: 1
- 1 COVER, CENTER 80151-K3M-T00ZBQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE (WL) 83550-K3M-T00ZAQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE (RED-BLACK) 83550-K3M-T00ZBQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE (GRAY-BLACK) 83550-K3M-T00ZCQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE (WHITE-BLACK) 83550-K3M-T00ZDQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE 83550-K3M-T00ZEQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE 83550-K3M-T00ZFQty per bike: 1
- 2 COVER SET, RIGHT BODY SIDE 83550-K3M-T00ZGQty per bike: 1
- 2 COVER SET, RIGHT BODY 83550-K3M-T30ZAQty per bike: 1
- 2 COVER, RIGHT BODY WITH STICKER 83550-K3M-T30ZBQty per bike: 1
- 2 COVER, RIGHT BODY WITH STICKER 83550-K3M-T30ZCQty per bike: 1
- 2 COVER, RIGHT BODY WITH STICKER 83550-K3M-T30ZDQty per bike: 1
- 2 COVER, RIGHT BODY WITH STICKER 83550-K3M-T30ZEQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T30ZGQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T30ZHQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T30ZKQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZCQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZDQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZEQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZFQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZGQty per bike: 1
- 2 COVER, RIGHT BODY 83550-K3M-T70ZHQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZAQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZBQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZCQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZDQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZEQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE (WL) 83650-K3M-T00ZFQty per bike: 1
- 3 COVER SET, LEFT BODY SIDE 83650-K3M-T00ZGQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T30ZAQty per bike: 1
- 3 COVER SET, LEFT BODY WITH STICKER 83650-K3M-T30ZBQty per bike: 1
- 3 COVER SET, LEFT BODY WITH STICKER 83650-K3M-T30ZCQty per bike: 1
- 3 COVER SET, LEFT BODY WITH STICKER 83650-K3M-T30ZDQty per bike: 1
- 3 COVER SET, LEFT BODY WITH STICKER 83650-K3M-T30ZEQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T30ZGQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T30ZHQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T30ZKQty per bike: 1
- 3 COVER, LEFT BODY 83650-K3M-T70ZCQty per bike: 1
- 3 COVER, LEFT BODY 83650-K3M-T70ZDQty per bike: 1
- 3 COVER, LEFT BODY 83650-K3M-T70ZEQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T70ZFQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T70ZGQty per bike: 1
- 3 COVER SET, LEFT BODY 83650-K3M-T70ZHQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZAQty per bike: 1
- 4 COVER, CENTER REAR (GRAY/BLACK) 83750-K3M-T00ZCQty per bike: 1
- 4 COVER, CENTER REAR (GREEN/BLACK) 83750-K3M-T00ZEQty per bike: 1
- 4 COVER, CENTER REAR (YELLOW/BLACK) 83750-K3M-T00ZGQty per bike: 1
- 4 COVER, CENTER REAR (RED/BLACK) 83750-K3M-T00ZHQty per bike: 1
- 4 COVER, CENTER REAR (BLUE/BLACK) 83750-K3M-T00ZJQty per bike: 1
- 4 COVER, CENTER REAR (WHITE/BLACK) 83750-K3M-T00ZKQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZLQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZMQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZPQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZQQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZRQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZSQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZTQty per bike: 1
- 4 COVER, CENTER REAR 83750-K3M-T00ZUQty per bike: 1
- 5 STAY, RIGHT CENTER REAR COVER 83751-K3M-T00Qty per bike: 1
- 6 COVER, TAILLIGHT DECORATIVE (ALL COLORS) 83760-K3M-T00ZBQty per bike: 1
- 6 TAILLIGHT 83760-K3M-T00ZCQty per bike: 1
- 6 COVER, TAILLIGHT DECORATIVE 83760-K3M-T10Qty per bike: 1
- 7 STAY, LEFT CENTER REAR COVER 83761-K3M-T00Qty per bike: 1
- 8 CLIP, RUBBER SEAL 90116-K2P-V61Qty per bike: 2
- 8 RIVET, 6 mm 90116-K3V-N01Qty per bike: 2
- 8 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 9 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 2
- 10 CLIP, LOCK 90651-K14-A31Qty per bike: 2
- 11 CLIP, LOCK (PO) 90666-K59-A11Qty per bike: 4
- 12 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 4
- 13 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 6
