GIORNO 2024 · E-2 CYLINDER HEAD

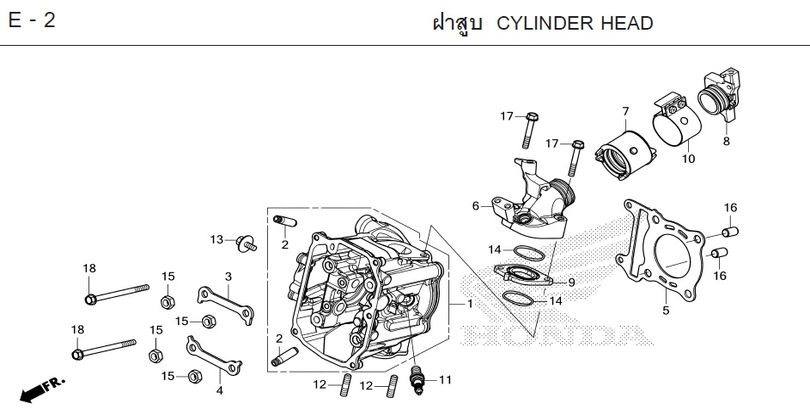

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-2
- 1 CYLINDER HEAD ASSY 12200-K2S-N00Qty per bike: 1
- 2 GUIDE, VALVE (O.S.) 12205-KYJ-305Qty per bike: 4
- 3 PLATE, INTAKE SIDE CYLINDER HEAD MOUNTING 12212-K0R-V00Qty per bike: 1
- 4 PLATE, EXHAUST SIDE CYLINDER HEAD MOUNTING 12213-K0R-V00Qty per bike: 1
- 5 GASKET, CYLINDER HEAD (STD/0.25/0.50) 12251-K1N-V01Qty per bike: 1
- 6 PIPE, INTAKE 17111-K2T-T00Qty per bike: 1
- 7 INSULATOR, THROTTLE BODY 17112-K1N-V00Qty per bike: 1
- 8 PIPE, INTAKE B 17115-K1N-V00Qty per bike: 1
- 9 INSULATOR, INTAKE PIPE 17119-K0R-V10Qty per bike: 1
- 10 BAND, THROTTLE BODY INSULATOR 17255-K1N-V00Qty per bike: 1
- 11 SPARK PLUG (LMAR8L-9) (NGK) 31917-K0R-V01Qty per bike: 1
- 12 BOLT, STUD, 7x17 90004-KGF-910Qty per bike: 2
- 13 BOLT, WASHER, 6x12 90022-K40-F00Qty per bike: 1
- 14 O-RING, INTAKE PIPE 91302-K40-F00Qty per bike: 2
- 15 NUT, HEX, 8 mm 94030-08280Qty per bike: 4
- 16 PIN, DOWEL, 10x16 94301-10160Qty per bike: 2
- 17 BOLT, FLANGE, 6x40 95701-06040-00Qty per bike: 2
- 18 BOLT, FLANGE, 6x90 95701-06090-08Qty per bike: 2
