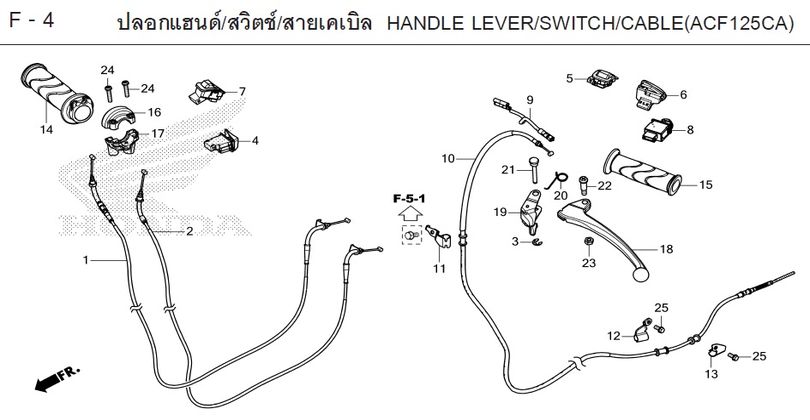

GIORNO 2024 · F-4
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-4
- 1 CABLE A, THROTTLE 17910-K3M-T01Qty per bike: 1
- 2 CABLE B, THROTTLE 17920-K3M-T01Qty per bike: 1
- 3 CLIP, LOCK, 3 mm 30158-GW3-980Qty per bike: 1
- 4 SWITCH SET, STARTER (TOYO) 35160-K20-T21Qty per bike: 1
- 5 SWITCH, HI-LO BEAM 35170-K3M-T01Qty per bike: 1
- 6 SWITCH SET, HORN (TOYO) 35180-K20-T21Qty per bike: 1
- 7 SWITCH, IDLING STOP 35190-K3M-T01Qty per bike: 1
- 8 SWITCH, TURN SIGNAL 35200-K3M-T11Qty per bike: 1
- 9 SWITCH SET, FRONT STOP LIGHT 35340-K27-V01Qty per bike: 1
- 10 CABLE, REAR BRAKE 43450-K3M-T11Qty per bike: 1
- 11 CLAMP, REAR BRAKE CABLE A 43457-K3M-T00Qty per bike: 1
- 12 CLAMP, REAR BRAKE CABLE B 43458-K3M-T00Qty per bike: 1
- 13 CLAMP, REAR BRAKE CABLE C 43459-K1Y-D10Qty per bike: 1
- 14 GRIP, THROTTLE (ALL COLORS) 53140-K3M-T10ZAQty per bike: 1
- 15 GRIP, LEFT HANDLE (ALL COLORS) 53166-K3M-T10ZAQty per bike: 1
- 16 HOLDER, UPPER THROTTLE GRIP 53167-K66-V00Qty per bike: 1
- 17 HOLDER, LOWER THROTTLE GRIP 53168-K66-V00Qty per bike: 1
- 18 LEVER, REAR BRAKE 53178-K1F-V00Qty per bike: 1
- 19 LOCK, BRAKE LEVER (A) 53181-K1F-V00Qty per bike: 1
- 20 SPRING, REAR BRAKE LEVER LOCK RETURN 53182-KVB-900Qty per bike: 1
- 21 PIN, BRAKE LEVER LOCK PIVOT 53183-K97-A10Qty per bike: 1
- 22 SCREW, REAR BRAKE LEVER PIVOT 90115-KVB-T00Qty per bike: 1
- 23 NUT, U, 5 mm 90302-KVB-T01Qty per bike: 1
- 24 SCREW, 5x22 93500-05022-0AQty per bike: 2
- 25 BOLT, FLANGE, 6x12 96001-06012-00Qty per bike: 2
This catalogue is shared by: GIORNO 2024. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
