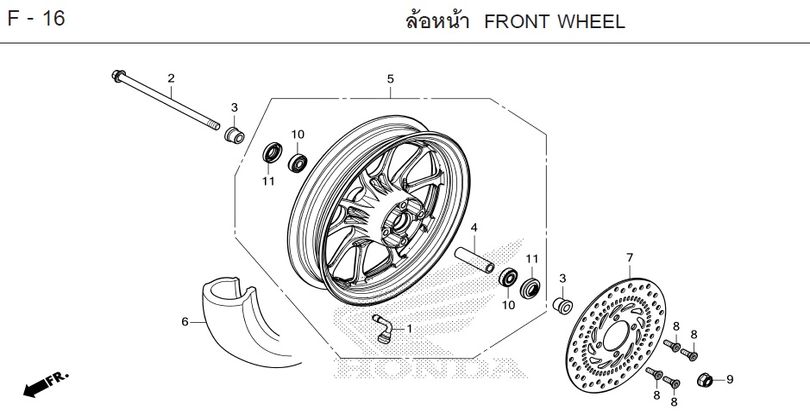

GIORNO 2024 · F-16 FRONT WHEEL
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-16
- 1 VALVE, TIRE 42753-KJ9-004Qty per bike: 1
- 2 AXLE, FRONT WHEEL 44301-K0W-N00Qty per bike: 1
- 3 COLLAR, FRONT WHEEL SIDE 44311-KWN-900Qty per bike: 2
- 4 COLLAR, FRONT AXLE BEARING 44620-K15-920Qty per bike: 1
- 5 FRONT WHEEL SET (ALL COLORS) 44650-K3M-T00ZAQty per bike: 1
- 6 TIRE, FRONT (100/90-12 59J) 44711-K3M-T01Qty per bike: 1
- 7 DISK, FRONT BRAKE 45351-K2S-T11Qty per bike: 1
- 7 DISK, FRONT BRAKE 45351-K93-N01Qty per bike: 1
- 8 BOLT, BRAKE DISK MOUNTING, 8x24 90105-KGH-900Qty per bike: 4
- 9 NUT, U, 12 mm (FUJI SEIMITSU) 90306-KGH-901Qty per bike: 1
- 10 BEARING, RADIAL BALL (6201U L) (NSK) 91052-K24-901Qty per bike: 2
- 10 BEARING, RADIAL BALL (6201U L) (FAG) 91052-K24-904Qty per bike: 2
- 11 SEAL, DUST, 21x37x7 (ARAI) 91251-K35-V01Qty per bike: 2
This catalogue is shared by: GIORNO 2024. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
