GIORNO 2024 · F-5 FRONT BRAKE MASTER CYLINDER(ACF125CB)

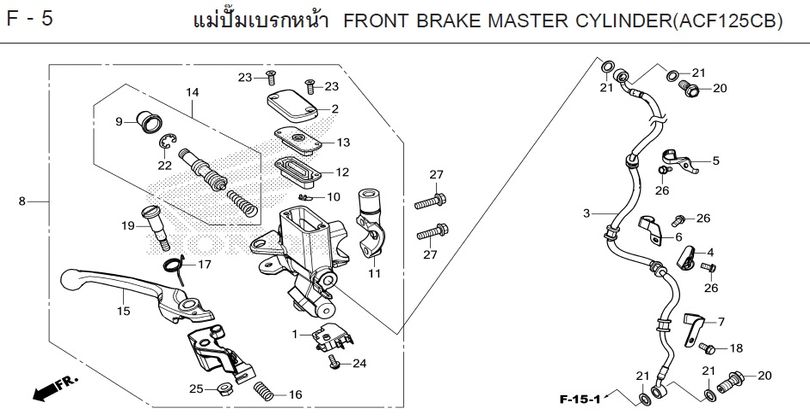

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-5
- 1 SWITCH SET, FRONT STOP LIGHT (ALPS) 35340-MGS-D31Qty per bike: 1
- 2 CAP, REAR BRAKE RESERVOIR 43513-KTY-C01Qty per bike: 1
- 3 HOSE, FRONT BRAKE 45126-K3M-T01Qty per bike: 1
- 4 CLAMP B, FRONT BRAKE HOSE 45128-K12-900Qty per bike: 1
- 5 CLAMP A, FRONT BRAKE HOSE 45155-K3M-T00Qty per bike: 1
- 6 CLAMP, FRONT BRAKE HOSE B 45156-K3M-T00Qty per bike: 1
- 7 CLAMP C, FRONT BRAKE HOSE 45157-K3M-T00Qty per bike: 1
- 8 MASTER CYLINDER SET, FRONT BRAKE 45500-K3M-T01Qty per bike: 1
- 9 BOOT, DUST 45504-410-003Qty per bike: 1
- 10 PLATE, BAFFLE 45512-MA6-006Qty per bike: 1
- 11 CLAMP, MIRROR 45517-K3M-T00Qty per bike: 1
- 12 DIAPHRAGM 45520-GW0-911Qty per bike: 1
- 13 PLATE, DIAPHRAGM 45521-GW0-911Qty per bike: 1
- 14 PISTON SET, BRAKE MASTER CYLINDER (NISSIN) 45530-KVS-M21Qty per bike: 1
- 15 LEVER, FRONT BRAKE 53175-K81-N51Qty per bike: 1
- 16 SPRING, RETURN 53198-GBL-870Qty per bike: 1
- 17 SPRING, REAR BRAKE LEVER LOCK RETURN 53199-KVG-910Qty per bike: 1
- 18 BOLT, FLANGE, 6x12 90013-GHB-610Qty per bike: 1
- 19 BOLT, FRONT BRAKE LEVER MOUNTING 90114-K44-V01Qty per bike: 1
- 20 BOLT, OIL (BRAKE), 10x22 (NISSIN) 90145-KPH-B30Qty per bike: 2
- 21 WASHER, SEALING 90545-300-000Qty per bike: 4
- 22 CLIP, INNER LOCK, 18.8 mm 90651-K03-M61Qty per bike: 1
- 23 SCREW, 4x12 93600-04012-1GQty per bike: 2
- 24 SCREW, WASHER, 4x12 93893-04012-17Qty per bike: 1
- 25 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 1
- 26 BOLT, FLANGE, 6x12 96001-06012-00Qty per bike: 3
- 27 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 2
