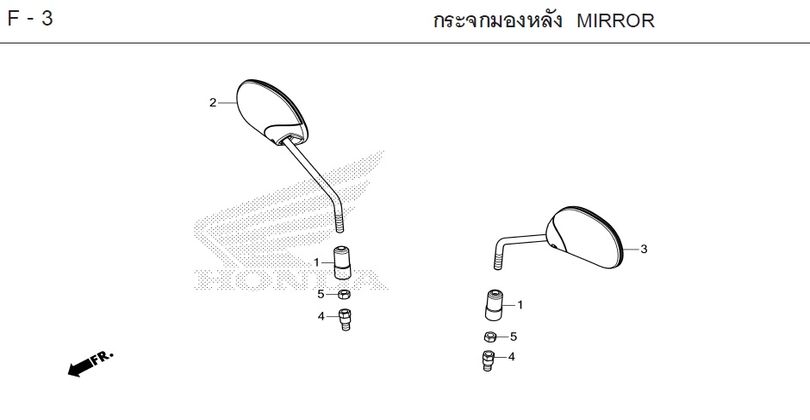

GIORNO 2024 · F-3 MIRROR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-3
- 1 COVER, LOCK NUT 88119-K0J-N00Qty per bike: 2
- 2 MIRROR, RIGHT REARVIEW (YELLOW/BLACK) 88210-K3M-T01ZAQty per bike: 1
- 2 MIRROR, RIGHT REARVIEW (RED/BLACK) 88210-K3M-T01ZBQty per bike: 1
- 2 MIRROR, RIGHT REARVIEW (BLUE/BLACK) 88210-K3M-T01ZCQty per bike: 1
- 2 MIRROR, RIGHT REARVIEW (WHITE/BLACK) 88210-K3M-T01ZDQty per bike: 1
- 2 MIRROR, RIGHT REARVIEW (GRAY/BLACK) 88210-K3M-T01ZEQty per bike: 1
- 2 MIRROR, RIGHT REARVIEW (GREEN/BLACK) 88210-K3M-T01ZFQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (YELLOW/BLACK) 88220-K3M-T01ZAQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (RED/BLACK) 88220-K3M-T01ZBQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (BLUE/BLACK) 88220-K3M-T01ZCQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (WHITE/BLACK) 88220-K3M-T01ZDQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (GRAY/BLACK) 88220-K3M-T01ZEQty per bike: 1
- 3 MIRROR, LEFT REARVIEW (GREEN/BLACK) 88220-K3M-T01ZFQty per bike: 1
- 4 BOLT, MIRROR JOINT, 10 mm 90101-KWW-640Qty per bike: 2
- 5 NUT, HEX, 10 mm (LEFT THREAD) 90301-KWW-640Qty per bike: 2
This catalogue is shared by: GIORNO 2024. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
