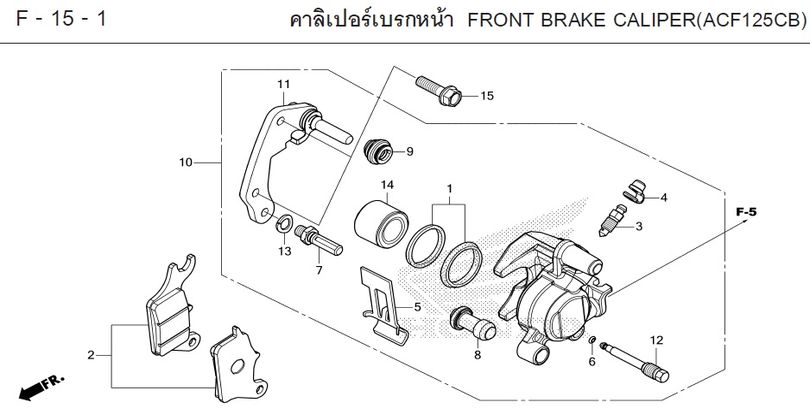

GIORNO 2024 · F-15-1 15-1 FRONT BRAKE CALIPER(ACF125CB)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15-1
- 1 CALIPER PISTON SEAL SET 06451-961-405Qty per bike: 1
- 2 PAD SET, FRONT BRAKE 06455-KVB-T01Qty per bike: 1
- 3 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 4 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 5 SPRING, BRAKE PAD 45108-KVB-T01Qty per bike: 1
- 6 WASHER, LOCK 45111-MAJ-G41Qty per bike: 1
- 7 BOLT, BRAKE PAD PIN 45131-GZ0-006Qty per bike: 1
- 8 BUSH, BRAKE PAD PIN RUBBER (NISSIN) 45132-166-016Qty per bike: 1
- 9 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 10 CALIPER SET, FRONT BRAKE 45150-K12-902Qty per bike: 1
- 11 CALIPER BRACKET SET, FRONT BRAKE 45190-K12-901Qty per bike: 1
- 12 PIN, BRAKE PAD 45215-KPH-951Qty per bike: 1
- 13 WASHER 45216-166-006Qty per bike: 1
- 14 PISTON, CALIPER 45218-KWB-601Qty per bike: 1
- 15 BOLT, FLANGE, 8x28 90131-K3M-T00Qty per bike: 2
