GIORNO 2024 · F-11 FLOOR STEP

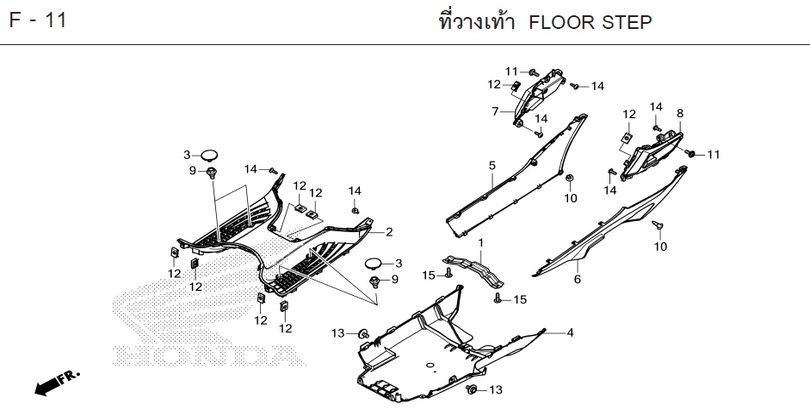

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-11
- 1 STAY, STEP 50616-K3M-T00Qty per bike: 1
- 2 STEP (ALL COLORS) 64310-K3M-T00ZCQty per bike: 1
- 3 LID, STEP (ALL COLORS) 64311-K3M-T00ZAQty per bike: 4
- 4 COVER, LOWER 64315-K3M-T00Qty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZCQty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZEQty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZGQty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZHQty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZJQty per bike: 1
- 5 COVER, RIGHT FLOOR SIDE 64431-K3M-T00ZKQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZCQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZEQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZGQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZHQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZJQty per bike: 1
- 6 COVER, LEFT FOOTREST SIDE 64432-K3M-T00ZKQty per bike: 1
- 7 COVER, RIGHT REAR STEP OUTER 83511-K3M-T00ZAQty per bike: 1
- 8 COVER, LEFT REAR STEP OUTER 83611-K3M-T00ZAQty per bike: 1
- 9 BOLT, FLANGE, 6 mm 90116-KVB-900Qty per bike: 4
- 10 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 11 SCREW, 5x13 90117-KVG-A20Qty per bike: 2
- 12 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 8
- 13 BOLT, WASHER, 6x12 93404-06012-00Qty per bike: 2
- 14 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 6
- 15 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 2
