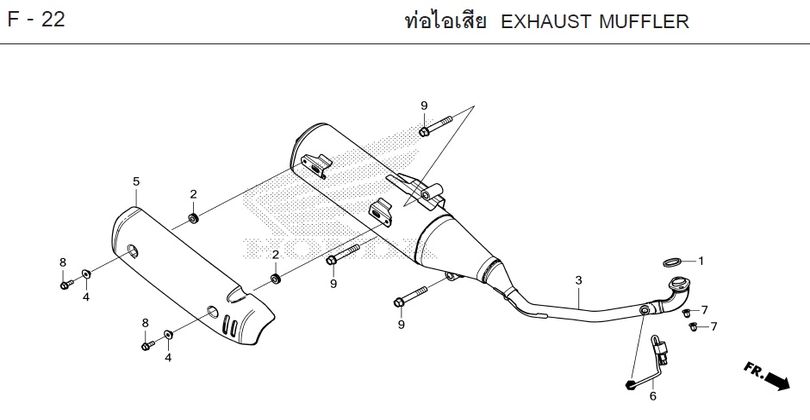

GIORNO 2024 · F-22 EXHAUST MUFFLER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-22
- 1 GASKET, EXHAUST PIPE 18291-GE2-921Qty per bike: 1
- 2 RUBBER, EXHAUST PROTECTOR 18293-KSB-900Qty per bike: 2
- 3 EXHAUST PIPE 18300-K3M-T00Qty per bike: 1
- 4 COLLAR, EXHAUST PIPE PROTECTOR 18316-K01-900Qty per bike: 2
- 5 GUARD, EXHAUST PIPE HEAT 18318-K3M-T00Qty per bike: 1
- 6 SENSOR, OXYGEN 36532-K3M-T01Qty per bike: 1
- 7 NUT, CAP, 7 mm 90304-MJ0-920Qty per bike: 2
- 8 BOLT, FLANGE, 6x16 95701-06016-07Qty per bike: 2
- 9 BOLT, FLANGE, 10x65 95701-10065-07Qty per bike: 3
