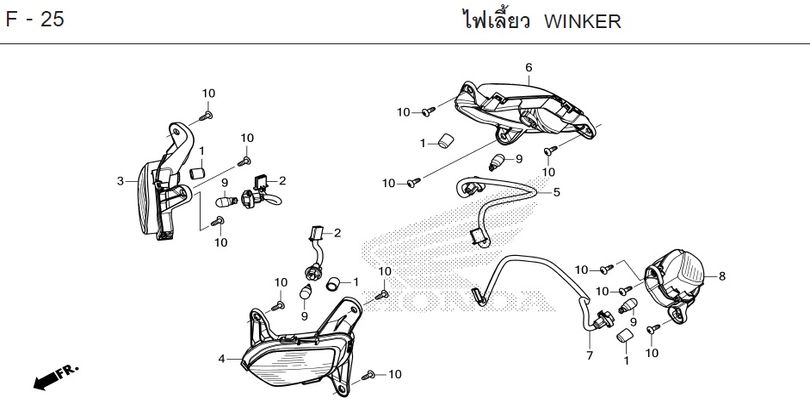

GIORNO 2024 · F-25 WINKER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-25
- 1 PIPE, CP 33113-K07-M51Qty per bike: 4
- 2 JOINT, FRONT TURN SIGNAL BULB SOCKET 33410-K3M-T01Qty per bike: 2
- 3 TURN SIGNAL, RIGHT FRONT 33420-K3M-T01Qty per bike: 1
- 4 TURN SIGNAL, LEFT FRONT 33470-K3M-T01Qty per bike: 1
- 5 SOCKET, RIGHT REAR TURN SIGNAL BULB 33610-K3M-T01Qty per bike: 1
- 6 TURN SIGNAL, RIGHT REAR 33620-K3M-T01Qty per bike: 1
- 7 SOCKET, LEFT REAR TURN SIGNAL BULB 33660-K3M-T01Qty per bike: 1
- 8 TURN SIGNAL, LEFT REAR 33670-K3M-T01Qty per bike: 1
- 9 BULB, TURN SIGNAL 12V 10W 34904-K58-TC1Qty per bike: 4
- 10 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 12
This catalogue is shared by: GIORNO 2024. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
