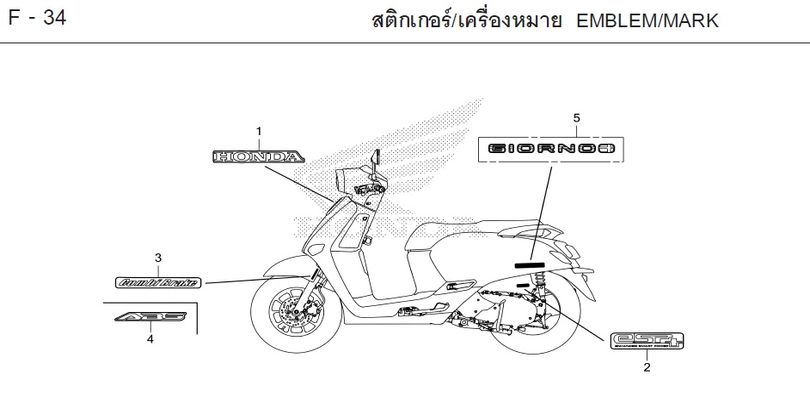

GIORNO 2024 · F-34 EMBLEM/MARK
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-34
- 1 MARK, HONDA (65 mm) (ALL COLORS) 86101-K3M-T00ZAQty per bike: 1
- 2 MARK, ESP 86170-K0R-V00Qty per bike: 1
- 3 MARK (COMBI BRAKE) (WHITE-BLACK) 86611-K2S-T00ZBQty per bike: 1
- 4 MARK, ABS (RIGHT ONLY) (BLUE) (BLUE/BLACK) 86611-MGZ-D10ZBQty per bike: 1
- 4 MARK, ABS (RIGHT ONLY) (WHITE/BLACK) (GRAY/BLACK / ORANGE/BLACK) 86611-MGZ-D10ZCQty per bike: 1
- 5 MARK, REAR COVER (GIORNO+) 86836-K3M-T00ZAQty per bike: 2
- 5 MARK, REAR COVER (GIORNO+) 86836-K3M-T00ZBQty per bike: 2
