GIORNO 2024 · F-27 REAR FENDER/LICENSE LIGHT

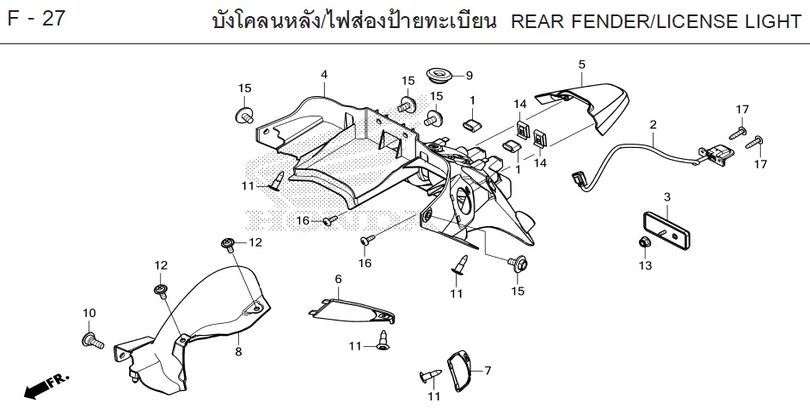

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-27
- 1 RUBBER, LICENSE LIGHT COVER 18293-KYY-900Qty per bike: 2
- 2 LICENSE LIGHT 33720-K3M-T01Qty per bike: 1
- 3 REFLECTOR (STANLEY) 33741-KWN-901Qty per bike: 1
- 4 FENDER, REAR 80100-K3M-T00Qty per bike: 1
- 5 COVER, LICENSE LIGHT 80102-K3M-T00Qty per bike: 1
- 6 CAP, RIGHT INNER TURN SIGNAL BASE 80103-K3M-T00Qty per bike: 1
- 7 CAP, LEFT INNER TURN SIGNAL BASE 80104-K3M-T00Qty per bike: 1
- 8 FENDER, REAR INNER 80107-K3M-T00Qty per bike: 1
- 9 RUBBER, TAILLIGHT 83601-MN5-000Qty per bike: 1
- 10 BOLT, 6x18 90101-K29-900Qty per bike: 1
- 11 CLIP, LOCK 90116-SP0-003Qty per bike: 4
- 12 SCREW, 5x13 90117-KVG-A20Qty per bike: 2
- 13 NUT, U, 5 mm (FUJI SEIMITSU) 90301-KWN-901Qty per bike: 1
- 14 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 2
- 15 BOLT, WASHER, 6x12 93404-06012-00Qty per bike: 4
- 16 SCREW, TAPPING, 4x12 93903-24380Qty per bike: 2
- 17 SCREW, TAPPING, 4x16 93903-24480Qty per bike: 2
