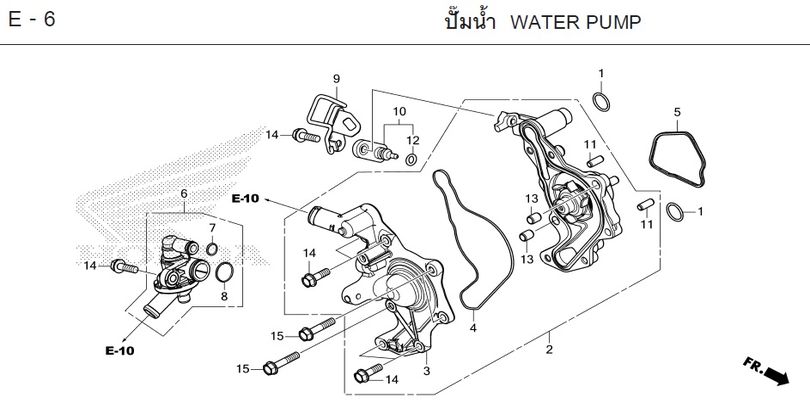

GIORNO 2024 · E-6 WATER PUMP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-6
- 1 O-RING, 15.4x2 12207-KWN-900Qty per bike: 2
- 2 WATER PUMP ASSY 19200-K1N-V00Qty per bike: 1
- 3 COVER, WATER PUMP 19221-K1N-V00Qty per bike: 1
- 4 GASKET, WATER PUMP COVER 19226-K0R-V00Qty per bike: 1
- 5 GASKET, WATER PUMP 19227-K0R-V01Qty per bike: 1
- 6 THERMOSTAT SET 19300-K0R-V02Qty per bike: 1
- 7 O-RING 19309-K0R-V02Qty per bike: 1
- 8 O-RING 19310-K35-V01Qty per bike: 1
- 9 STAY, WIRE 32964-K3M-T00Qty per bike: 1
- 10 SENSOR SET, COOLANT TEMPERATURE 37870-K0R-V01Qty per bike: 1
- 11 PIN, DOWEL, 6x15 90702-MG8-000Qty per bike: 2
- 12 O-RING, 6.3x2.5 91304-K0R-V00Qty per bike: 1
- 13 PIN, DOWEL, 8x10 94301-08100Qty per bike: 2
- 14 BOLT, FLANGE, 6x20 95701-06020-00Qty per bike: 6
- 15 BOLT, FLANGE, 6x30 95701-06030-00Qty per bike: 3
This catalogue is shared by: GIORNO 2024. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
