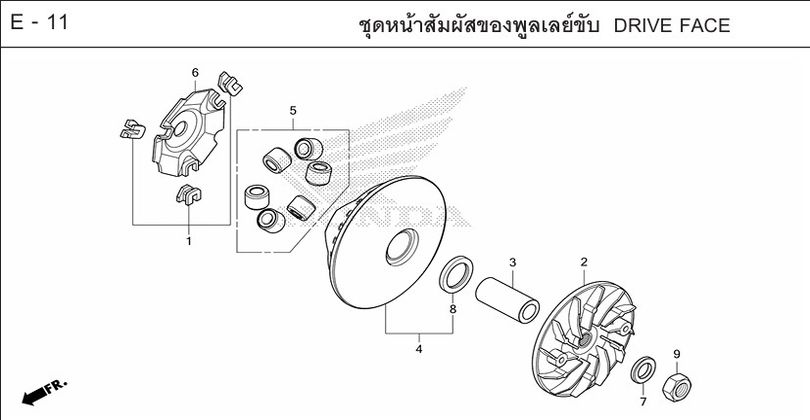

GIORNO 2025 · E-11 DRIVE FACE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-11
- 1 SLIDE PLATE SET 22011-K1N-V01Qty per bike: 1
- 2 FACE, FIXED DRIVE PULLEY 22102-K2S-N00Qty per bike: 1
- 3 SHAFT, DRIVE PULLEY FACE 22105-K1N-V00Qty per bike: 1
- 4 MOVABLE DRIVE FACE SET 22110-K3A-V00Qty per bike: 1
- 5 WEIGHT SET 22123-K1N-V00Qty per bike: 1
- 6 PLATE, CURVED 22131-K40-F00Qty per bike: 1
- 7 WASHER, 15X29X5.5 90401-K1N-V00Qty per bike: 1
- 8 OIL SEAL, 24x31x3.5 91203-K1F-V01Qty per bike: 1
- 9 OIL SEAL, 24x31x3.5 91203-K35-V01Qty per bike: 1
- 9 NUT, HEX, 14 mm 94030-14200Qty per bike: 1
