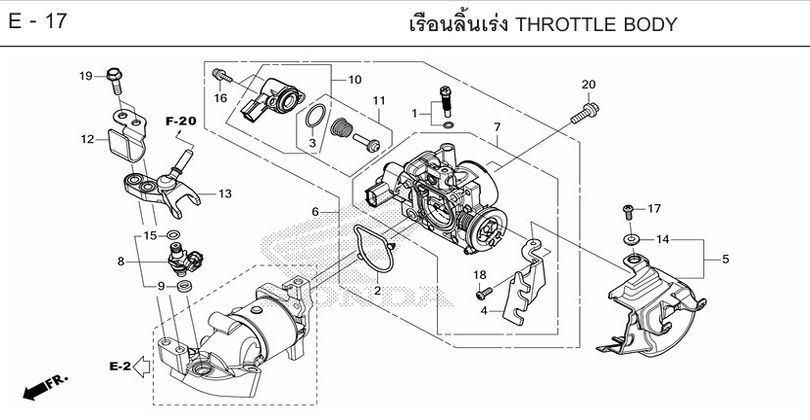

GIORNO 2025 · E-17 THROTTLE BODY
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-17
- 1 SCREW SET, IDLE AIR ADJUSTING 16016-K0J-N01Qty per bike: 1
- 2 O-RING, THROTTLE BODY 16075-K1N-V01Qty per bike: 1
- 3 O-RING, 1.9x20.4 16077-KVB-S51Qty per bike: 1
- 4 PLATE, THROTTLE CABLE 16169-K0R-V01Qty per bike: 1
- 5 COVER, THROTTLE BODY 16305-K1N-V00Qty per bike: 1
- 6 SENSOR SET, SIGNAL/THROTTLE BODY 16400-K3M-T01Qty per bike: 1
- 7 THROTTLE BODY ASSY 16410-K3M-T01Qty per bike: 1
- 8 INJECTOR SET, FUEL 16450-K0R-V01Qty per bike: 1
- 9 SEAL, INJECTOR 16472-KPC-D50Qty per bike: 1
- 10 SOLENOID 16480-K0J-N01Qty per bike: 1
- 11 VALVE SET 16485-GGZ-J01Qty per bike: 1
- 12 CLAMP, DRAIN TUBE 17219-K1N-V00Qty per bike: 1
- 13 JOINT, INJECTOR 17560-K2T-V00Qty per bike: 1
- 14 COLLAR, THROTTLE BODY COVER 61106-K62-B00Qty per bike: 1
- 15 O-RING, 6.3x2.2 91301-GGL-J01Qty per bike: 1
- 16 SCREW, WASHER, 4x10 93891-04010-18Qty per bike: 2
- 17 SCREW, WASHER, 5x16 93891-05016-08Qty per bike: 1
- 18 SCREW, WASHER, 5x12 93892-05012-18Qty per bike: 1
- 19 BOLT, FLANGE, 6x22 95801-06022-00Qty per bike: 2
- 20 BOLT, FLANGE, 6x20 96001-06020-00Qty per bike: 2
This catalogue is shared by: GIORNO 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
