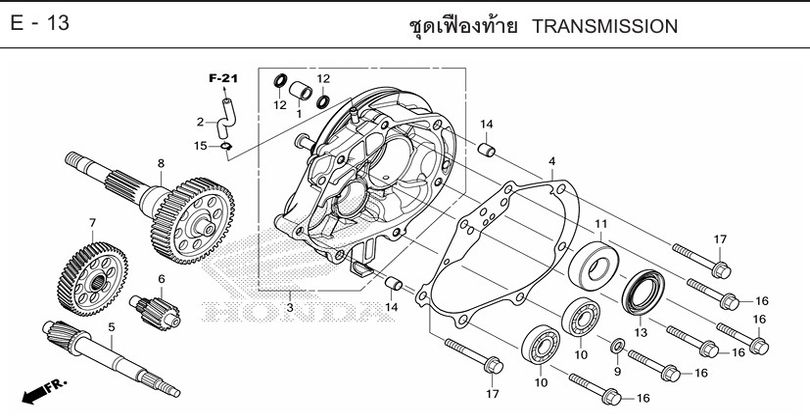

GIORNO 2025 · E-13 TRANSMISSION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 1 COLLAR, REAR BRAKE CAM 11204-KGF-900Qty per bike: 1
- 2 TUBE, BREATHER 11211-K1N-V00Qty per bike: 1
- 3 HOUSING, FINAL GEAR 21200-K1N-V00Qty per bike: 1
- 4 GASKET, FINAL GEAR CASE (NICHIAS) 21395-K1N-V01Qty per bike: 1
- 5 SHAFT, DRIVE (17T) 23411-K3A-V00Qty per bike: 1
- 6 SHAFT, DRIVEN (13T) 23421-K1Z-J10Qty per bike: 1
- 7 GEAR, DRIVEN (53T) 23422-K3A-V00Qty per bike: 1
- 8 GEAR, FINAL (44T) 23430-K2S-N00Qty per bike: 1
- 9 WASHER, SEALING, 8 mm 90495-MN5-000Qty per bike: 1
- 10 BEARING, RADIAL BALL, 6202 (NTN) 91004-KZR-601Qty per bike: 2
- 11 BEARING, RADIAL BALL, 6205UU (FAG) 91009-K2S-N01Qty per bike: 1
- 12 OIL SEAL, 14x20x3.2 91201-434-003Qty per bike: 2
- 13 OIL SEAL, 34x52x7 (ARAI) 91204-K35-J01Qty per bike: 1
- 14 PIN, DOWEL, 10x12 94301-10120Qty per bike: 2
- 15 CLIP, TUBE (C9) 95002-50000Qty per bike: 1
- 16 BOLT, FLANGE, 8x45 95701-08045-08Qty per bike: 5
- 17 BOLT, FLANGE, 8x55 95701-08055-08Qty per bike: 2
