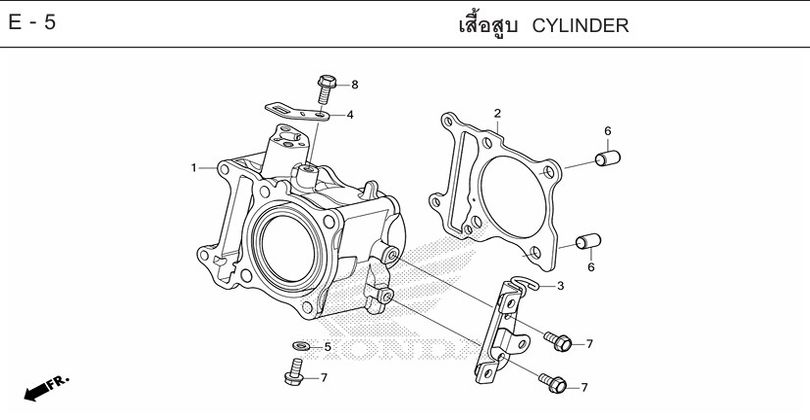

GIORNO 2025 · E-5 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-5
- 1 CYLINDER 12100-K3M-T00Qty per bike: 1
- 2 GASKET, CYLINDER (NICHIAS) 12191-K1N-V01Qty per bike: 1
- 3 HOLDER, IGNITION COIL 30515-K1N-V00Qty per bike: 1
- 4 STAY, CYLINDER 32962-K0R-V00Qty per bike: 1
- 5 WASHER, SEALING, 6.5 mm 90463-ML7-000Qty per bike: 1
- 6 PIN, DOWEL, 10x16 94301-10160Qty per bike: 2
- 7 BOLT, FLANGE, 6x14 95701-06014-00Qty per bike: 3
- 8 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 1
