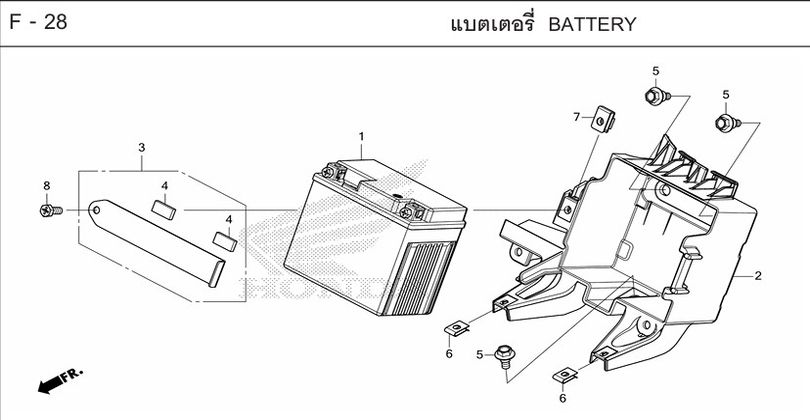

GIORNO 2025 · F-28 BATTERY
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-28
- 1 BATTERY (YTZ6V) (YUASA) 31500-KWN-902Qty per bike: 1
- 2 BOX, BATTERY 50380-K3M-T00Qty per bike: 1
- 3 HOLDER, BATTERY 50382-K3M-T00Qty per bike: 1
- 4 RUBBER, BATTERY A 50391-KVB-900Qty per bike: 2
- 5 BOLT, FLANGE, 6 mm 90116-KVB-900Qty per bike: 3
- 6 NUT, SPRING, 4 mm 90302-KWW-A00Qty per bike: 2
- 7 NUT, CLIP, 6 mm 90311-MT3-000Qty per bike: 1
- 8 BOLT, 6x14 92301-06014-0AQty per bike: 1
