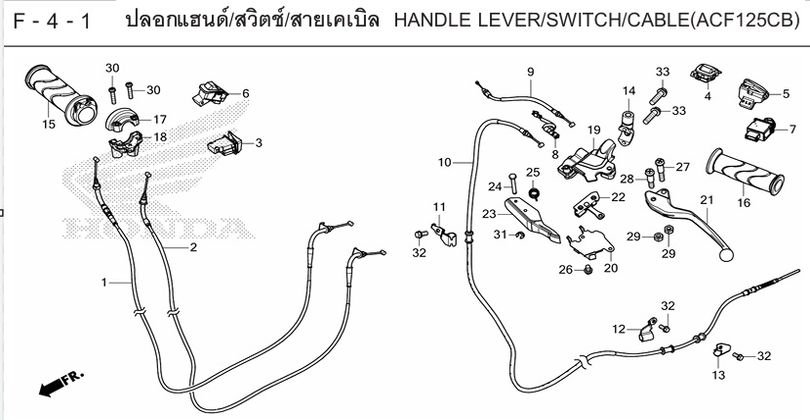

GIORNO 2025 · F-4-1
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-4-1
- 1 CABLE A, THROTTLE 17910-K3M-T01Qty per bike: 1
- 2 CABLE B, THROTTLE 17920-K3M-T01Qty per bike: 1
- 3 SWITCH SET, STARTER (TOYO) 35160-K20-T21Qty per bike: 1
- 4 SWITCH, HI-LO BEAM 35170-K3M-T01Qty per bike: 1
- 5 SWITCH SET, HORN (TOYO) 35180-K20-T21Qty per bike: 1
- 6 SWITCH, IDLING STOP 35190-K3M-T01Qty per bike: 1
- 7 SWITCH, TURN SIGNAL 35200-K3M-T11Qty per bike: 1
- 8 SWITCH SET, FRONT STOP LIGHT 35340-K27-V01Qty per bike: 1
- 9 CABLE, FRONT BRAKE 43440-K3M-T01Qty per bike: 1
- 10 CABLE, REAR BRAKE 43450-K3M-T01Qty per bike: 1
- 11 CLAMP, REAR BRAKE CABLE A 43457-K3M-T00Qty per bike: 1
- 12 CLAMP, REAR BRAKE CABLE B 43458-K3M-T00Qty per bike: 1
- 13 CLAMP, REAR BRAKE CABLE C 43459-K1Y-D10Qty per bike: 1
- 14 CLAMP, MIRROR 45517-K3M-T00Qty per bike: 1
- 15 GRIP, THROTTLE 53140-K44-V00Qty per bike: 1
- 16 GRIP, LEFT HANDLE 53166-K2S-N00Qty per bike: 1
- 17 HOLDER, UPPER THROTTLE GRIP 53167-K66-V00Qty per bike: 1
- 18 HOLDER, LOWER THROTTLE GRIP 53168-K66-V00Qty per bike: 1
- 19 HOLDER, REAR BRAKE LEVER 53172-K3M-T00Qty per bike: 1
- 20 COVER, REAR BRAKE LEVER HOLDER 53173-K0J-N00Qty per bike: 1
- 21 LEVER, REAR BRAKE 53178-K1A-N00Qty per bike: 1
- 22 BRAKE FORCE DISTRIBUTOR 53184-K59-A70Qty per bike: 1
- 23 LOCK, REAR BRAKE LEVER 53185-K1A-N00Qty per bike: 1
- 24 PIN, REAR BRAKE LEVER LOCK 53186-K81-N30Qty per bike: 1
- 25 SPRING, REAR BRAKE LEVER LOCK RETURN 53188-K81-N30Qty per bike: 1
- 26 SCREW, 5x8 90104-K81-N30Qty per bike: 1
- 27 SCREW, REAR BRAKE LEVER PIVOT 90115-K1A-N00Qty per bike: 1
- 28 SCREW, REAR BRAKE LEVER PIVOT 90115-KWN-900Qty per bike: 1
- 29 NUT, U, 5 mm 90302-KVB-T01Qty per bike: 2
- 30 SCREW, 5x22 93500-05022-0AQty per bike: 2
- 31 CLIP, LOCK, 3 mm 94540-03010Qty per bike: 1
- 32 BOLT, FLANGE, 6x12 96001-06012-00Qty per bike: 3
- 33 BOLT, FLANGE, 6x22 96001-06022-00Qty per bike: 2
