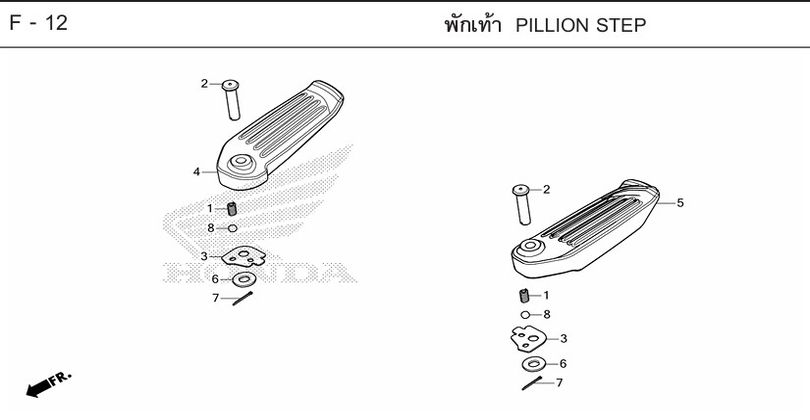

GIORNO 2025 · F-12 PILLION STEP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-12
- 1 SPRING, KICK STARTER 28333-300-000Qty per bike: 2
- 2 PIN, STEP 50603-KB4-000Qty per bike: 2
- 3 PLATE 50718-K0Z-900Qty per bike: 2
- 4 STEP, RIGHT REAR 50720-K3M-T00Qty per bike: 1
- 5 STEP, LEFT REAR 50730-K3M-T00Qty per bike: 11
- 6 WASHER, 8 mm 94101-08000Qty per bike: 2
- 7 PIN, COTTER, 1.6x15 94201-16150Qty per bike: 2
- 8 BALL, #8 (1/4) 96211-08000Qty per bike: 2
