GIORNO 2025 · E-12 DRIVEN FACE

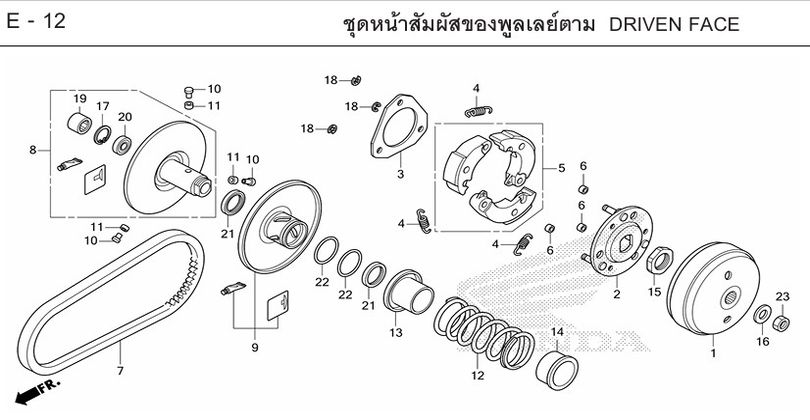

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-12
- 1 CLUTCH OUTER 22100-K2S-T01Qty per bike: 1
- 2 PLATE, DRIVE 22350-K1G-V01Qty per bike: 1
- 3 PLATE, CLUTCH SEAT 22361-K27-V02Qty per bike: 1
- 3 PLATE, CLUTCH SEAT 22361-K66-V02Qty per bike: 1
- 4 SPRING, CLUTCH SHOE 22401-K3A-V01Qty per bike: 3
- 5 CENTRIFUGAL CLUTCH SHOE SET 22535-K2S-T00Qty per bike: 1
- 6 DAMPER, RUBBER 22804-148-000Qty per bike: 3
- 7 BELT, DRIVE 23100-K3M-T01Qty per bike: 1
- 8 DRIVEN PULLEY FIXED FACE SET 23205-K2S-T00Qty per bike: 1
- 9 MOVABLE DRIVEN FACE SET 23224-K2S-T00Qty per bike: 1
- 10 PIN, GUIDE ROLLER 23225-KSY-900Qty per bike: 3
- 11 ROLLER, GUIDE 23226-K27-V02Qty per bike: 3
- 12 SPRING, DRIVEN PULLEY FACE 23233-K3A-V01Qty per bike: 1
- 13 COLLAR, SEAL 23237-K1G-V01Qty per bike: 1
- 14 COLLAR, SPRING 23238-KZR-600Qty per bike: 1
- 15 NUT, SPECIAL, 28 mm 90202-K1G-V01Qty per bike: 1
- 16 WASHER, 12.2x29x2.5 90441-GY6-940Qty per bike: 1
- 17 CLIP, INNER LOCK, 28 mm 90464-K27-V02Qty per bike: 1
- 17 CLIP, INNER LOCK, 28 mm 90601-K0P-D02Qty per bike: 1
- 18 CLIP, LOCK, 7 mm 90605-166-720Qty per bike: 3
- 19 BEARING, NEEDLE ROLLER, 20x29x18 (NTN) 91001-KCW-003Qty per bike: 1
- 19 BEARING, NEEDLE ROLLER, 20x29x18 (SCHAEFFLER) 91109-KVY-902Qty per bike: 1
- 20 BEARING, RADIAL BALL, 6902U 91009-K1G-V01Qty per bike: 1
- 20 BEARING, RADIAL BALL, 6902U 91009-K2F-N11Qty per bike: 1
- 20 BEARING, RADIAL BALL, 6902U 91009-K2F-N12Qty per bike: 1
- 21 SEAL, DRIVEN PULLEY FACE, 34x39x3 91211-K1G-V01Qty per bike: 2
- 22 O-RING 91351-642-000Qty per bike: 2
- 23 NUT, HEX, 12 mm 94030-12200Qty per bike: 1
