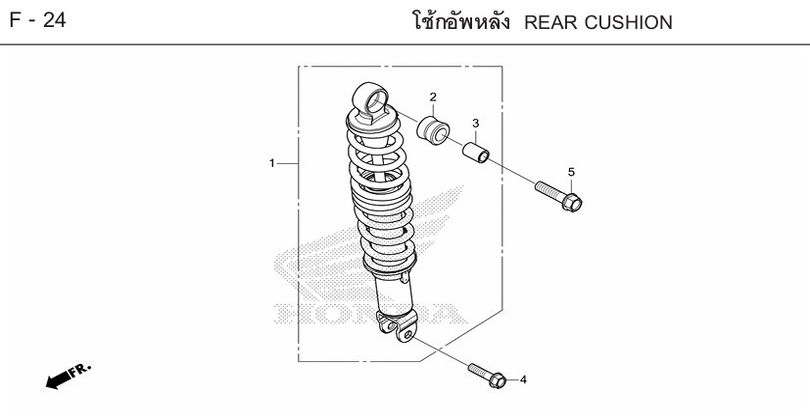

GIORNO 2025 · F-24 REAR CUSHION
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-24
- 1 REAR SHOCK ABSORBER SET 52400-K3M-T01Qty per bike: 1
- 2 BUSH, REAR SHOCK ABSORBER EYE RUBBER 52485-088-901Qty per bike: 1
- 3 COLLAR, REAR SHOCK ABSORBER BUSH INNER (SHOWA) 52486-GA7-003Qty per bike: 1
- 4 BOLT, FLANGE, 8x32 90131-K01-900Qty per bike: 1
- 5 BOLT, FLANGE, 10x40 95801-10040-00Qty per bike: 1
