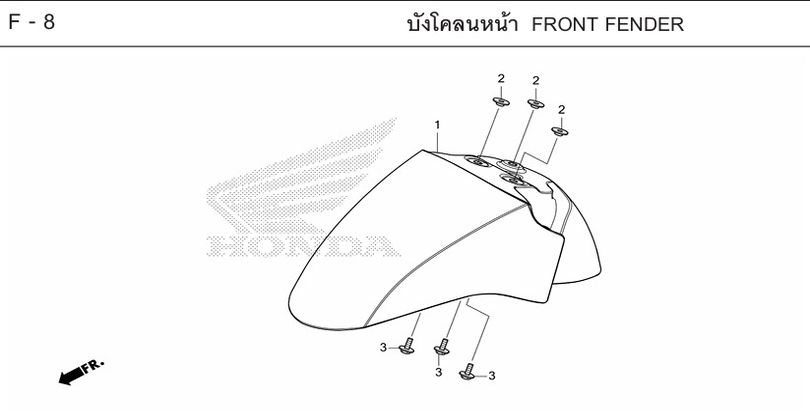

GIORNO 2025 · F-8 FRONT FENDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-8
- 1 FENDER, FRONT (WL) (WHITE/BLACK) 61200-K3M-T00ZAQty per bike: 1
- 1 FENDER, FRONT (WL) (YELLOW/BLACK) 61200-K3M-T00ZCQty per bike: 1
- 1 FENDER, FRONT (WL) (BLUE/BLACK) 61200-K3M-T00ZGQty per bike: 1
- 1 FENDER, FRONT (WL) (GREEN/BLACK) 61200-K3M-T00ZHQty per bike: 1
- 1 FENDER, FRONT (WL) (WHITE/BLACK) 61200-K3M-T10ZAQty per bike: 4
- 1 FENDER, FRONT (WL) (GRAY/BLACK) 61200-K3M-T10ZCQty per bike: 1
- 1 FENDER, FRONT (WL) (RED/BLACK) 61200-K3M-T10ZDQty per bike: 1
- 1 FENDER, FRONT 61200-K3M-T30ZCQty per bike: 1
- 1 FENDER, FRONT 61200-K3M-T30ZDQty per bike: 1
- 1 FENDER, FRONT 61200-K3M-T30ZEQty per bike: 1
- 1 FENDER, FRONT 61200-K3M-T50ZAQty per bike: 1
- 1 COVER, FRONT FENDER 61200-K3M-T50ZBQty per bike: 1
- 1 COVER, FRONT FENDER 61200-K3M-T50ZDQty per bike: 1
- 1 COVER, FRONT FENDER 61200-K3M-T50ZEQty per bike: 1
- 2 COLLAR, FRONT FENDER C 90512-K53-D00Qty per bike: 4
- 3 BOLT, WASHER, 6x16 93404-06016-08Qty per bike: 3
This catalogue is shared by: GIORNO 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
