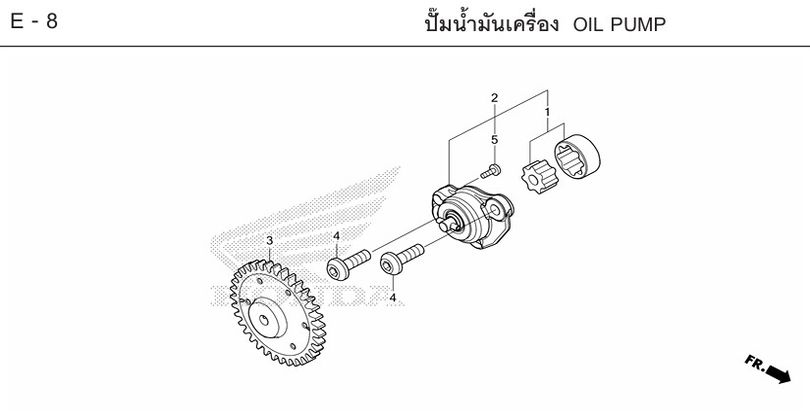

GIORNO 2025 · E-8 OIL PUMP
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-8
- 1 ROTOR SET, OIL PUMP 15021-K0R-V00Qty per bike: 1
- 2 OIL PUMP SET 15100-K1Z-N20Qty per bike: 1
- 2 OIL PUMP ASSY 15100-K1Z-N21Qty per bike: 1
- 3 GEAR, OIL PUMP DRIVE (35T) 15133-K0R-D00Qty per bike: 1
- 3 GEAR, OIL PUMP DRIVE (35T) 15133-K2S-N00Qty per bike: 1
- 4 BOLT, SPECIAL, 6X19 90003-K0R-V00Qty per bike: 2
- 5 SCREW, TAPPING, 4x8 93901-34120Qty per bike: 1
