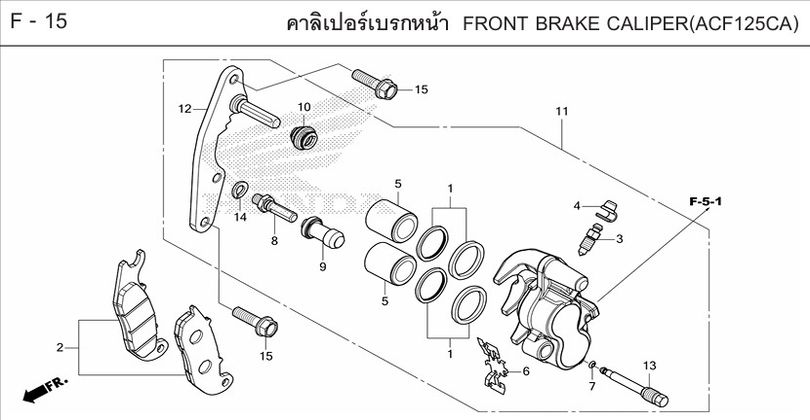

GIORNO 2025 · F-15 FRONT BRAKE CALIPER(ACF125CA)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-15
- 1 CALIPER PISTON SEAL SET 06451-GE2-405Qty per bike: 2
- 2 PAD SET, FRONT BRAKE 06455-KVB-912Qty per bike: 1
- 3 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 4 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 5 PISTON, CALIPER 45107-GE2-006Qty per bike: 2
- 6 SPRING, BRAKE PAD 45108-KPH-951Qty per bike: 1
- 7 WASHER, LOCK 45111-MAJ-G41Qty per bike: 1
- 8 BOLT, BRAKE PAD PIN 45131-GZ0-006Qty per bike: 1
- 9 BUSH, BRAKE PAD PIN RUBBER (NISSIN) 45132-166-016Qty per bike: 1
- 10 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 11 CALIPER SET, FRONT BRAKE 45150-K3M-T11Qty per bike: 1
- 12 CALIPER BRACKET SET, FRONT BRAKE 45190-K1N-V11Qty per bike: 1
- 13 PIN, BRAKE PAD 45215-KPH-951Qty per bike: 1
- 14 WASHER 45216-166-006Qty per bike: 1
- 15 BOLT, FLANGE, 8x28 90131-K3M-T00Qty per bike: 2
