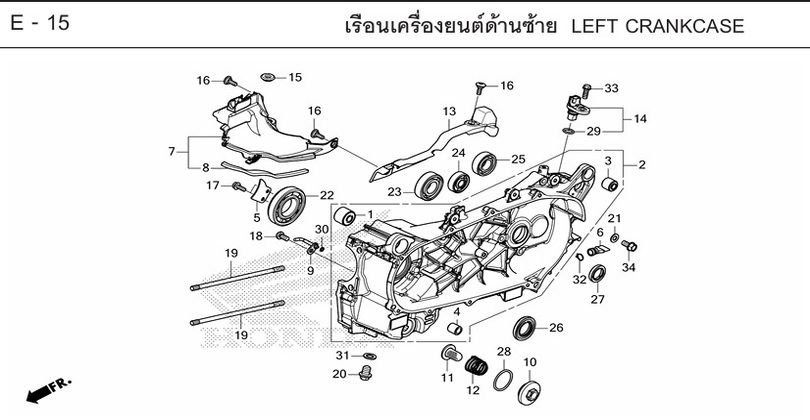

GIORNO 2025 · E-15 LEFT CRANKCASE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-15
- 1 BUSH, ENGINE HANGER (HOKUSHIN) 11103-KVB-901Qty per bike: 1
- 2 CRANKCASE SET, LEFT 11200-K3M-T00Qty per bike: 1
- 3 BUSH, REAR HANGER RUBBER (HOKUSHIN) 11203-KVB-901Qty per bike: 1
- 4 BUSH, MAIN STAND 11205-GBC-300Qty per bike: 1
- 5 PLATE, LEFT CRANKCASE BEARING RETAINER 11208-K40-F00Qty per bike: 1
- 6 TUBE, DRAIN 11343-KVG-900Qty per bike: 1
- 7 COVER SET, UPPER ENGINE 11410-K1N-V00Qty per bike: 1
- 8 SEAL, UPPER CRANKCASE COVER 11412-K1N-V00Qty per bike: 1
- 9 NOZZLE SET, OIL JET 15201-K0R-V00Qty per bike: 1
- 10 CAP, OIL FILTER ELEMENT 15411-K0R-V00Qty per bike: 1
- 11 STRAINER, OIL FILTER 15421-K0R-V00Qty per bike: 1
- 12 SPRING, OIL STRAINER 15426-K0R-V00Qty per bike: 1
- 13 COVER, VEHICLE SPEED SENSOR 32112-K1N-V00Qty per bike: 1
- 14 SENSOR SET, VEHICLE SPEED (PANASONIC) 37700-K0L-D11Qty per bike: 1
- 15 RUBBER, SIDE COVER 83551-376-000Qty per bike: 1
- 16 BOLT, 6x18 90001-KWR-000Qty per bike: 3
- 17 BOLT, FLANGE, 6x16 90003-883-000Qty per bike: 2
- 18 BOLT, SPECIAL, 6x12 90003-K0J-N00Qty per bike: 1
- 19 BOLT, STUD B, 8x213.2 90032-K0R-V00Qty per bike: 2
- 20 BOLT, DRAIN, 12x15 90131-883-000Qty per bike: 1
- 21 WASHER, SEALING, 8 mm 90495-MN5-000Qty per bike: 1
- 22 BEARING, RADIAL BALL, 35X72X15 91002-K1N-V01Qty per bike: 1
- 23 BEARING, RADIAL BALL, 6204 (NTN) 91003-KZR-601Qty per bike: 1
- 24 BEARING, RADIAL BALL, 6301 (FAG) 91005-K2S-N01Qty per bike: 1
- 25 BEARING, RADIAL BALL, 6004 (NTN) 91016-K1Z-J11Qty per bike: 1
