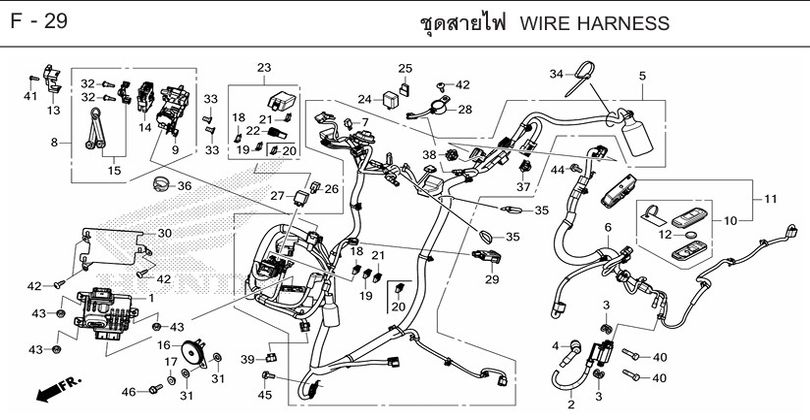

GIORNO 2025 · F-29 WIRE HARNESS
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-29
- 2 COIL, IGNITION 30510-K3M-T11Qty per bike: 1
- 3 WASHER, IGNITION COIL 30520-GFM-900Qty per bike: 2
- 4 CAP, SPARK PLUG (SHIHLIN ELECTRIC) 30700-K0R-V01Qty per bike: 1
- 5 WIRE HARNESS 32100-K3M-T00Qty per bike: 1
- 5 WIRE HARNESS 32100-K3M-T10Qty per bike: 1
- 6 ENGINE SUB WIRE HARNESS 32104-K3M-T00Qty per bike: 1
- 7 TERMINAL, DIODE (2P) (3A) 32146-S84-003Qty per bike: 1
- 8 SWITCH SET, STEERING LOCK 35100-K2T-V01Qty per bike: 1
- 9 SWITCH, STEERING LOCK 35101-K2T-V01Qty per bike: 1
- 10 HONDA SMART KEY SET 35111-K0W-TA1Qty per bike: 1
- 11 CONTROL UNIT SET, HONDA SMART KEY SYSTEM 35141-K3M-T00Qty per bike: 1
- 12 BATTERY (CR2032) (MURATA) 35148-K1W-D00Qty per bike: 1
- 12 BATTERY (CR2032) (PANASONIC) 35148-K78-N10Qty per bike: 1
- 12 BATTERY (CR2032) (MAXELL) 72148-S04-000Qty per bike: 1
- 13 COVER, CABLE 35191-K53-D01Qty per bike: 1
- 14 SEAT OPENER SWITCH SET 35193-K0R-V01Qty per bike: 1
- 15 KEY SET, EMERGENCY 35194-K1Z-J11Qty per bike: 1
- 16 HORN (HIGH) 38110-K3M-T01Qty per bike: 1
- 17 COLLAR, HORN STAY 38117-K3M-T00Qty per bike: 1
- 18 FUSE (7.5A) 38221-SNA-A31Qty per bike: 5
- 19 FUSE (10A) 38221-SNA-A41Qty per bike: 5
- 20 FUSE (15A) 38221-SNA-A51Qty per bike: 2
- 21 FUSE (20A) 38221-SNA-A61Qty per bike: 2
- 22 PULLER, FUSE 38235-SNA-A01Qty per bike: 1
- 23 COVER, FUSE BOX 38255-K3M-T01Qty per bike: 1
- 23 COVER, FUSE BOX 38255-K3M-T11Qty per bike: 1
- 24 RELAY, TURN SIGNAL 38301-GK8-014Qty per bike: 1
- 25 RUBBER, TURN SIGNAL RELAY DAMPER 38306-KJ6-740Qty per bike: 1
- 26 RELAY, MAIN (MICRO ISO 4P) 38501-MKR-D11Qty per bike: 1
- 27 RELAY, STARTER (PANASONIC) 38502-KWN-901Qty per bike: 1
- 28 BUZZER 38720-K1W-D01Qty per bike: 1
- 29 SOCKET, USB CHARGER (TYPE-A) 38940-K2T-V11Qty per bike: 1
- 30 STAY, ECU BOX 50301-K3M-T00Qty per bike: 1
- 31 RUBBER B 61106-KW6-840Qty per bike: 2
- 32 SCREW 90104-K53-D01Qty per bike: 2
- 33 SCREW, FLANGE LOCK, 6x12 90164-KZL-A00Qty per bike: 2
- 34 STRAP, WIRE 90651-K31-A61Qty per bike: 1
- 35 BAND, WIRE (BLACK) 90652-KT1-771Qty per bike: 2
- 36 STRAP (50) 90652-MKH-D20Qty per bike: 1
- 37 CLIP, 2-WAY 91533-S5A-003Qty per bike: 1
- 38 CLIP, 2-WAY (DARK BLUE) 91535-STK-003Qty per bike: 1
- 39 CAP (6P) (RED) 91771-MKK-H11Qty per bike: 1
- 40 BOLT, HEX, 6x22 92101-06022-4JQty per bike: 2
- 41 SCREW, TAPPING, 4x12 93901-24320Qty per bike: 1
- 42 SCREW, TAPPING, 5x16 93903-25320Qty per bike: 4
- 43 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 3
- 44 BOLT, FLANGE, 6x10 95701-06010-00Qty per bike: 1
- 45 BOLT, FLANGE, 6x12 95701-06012-00Qty per bike: 1
- 46 BOLT, FLANGE, 6x16 95701-06016-00Qty per bike: 1
This catalogue is shared by: GIORNO 2025. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
