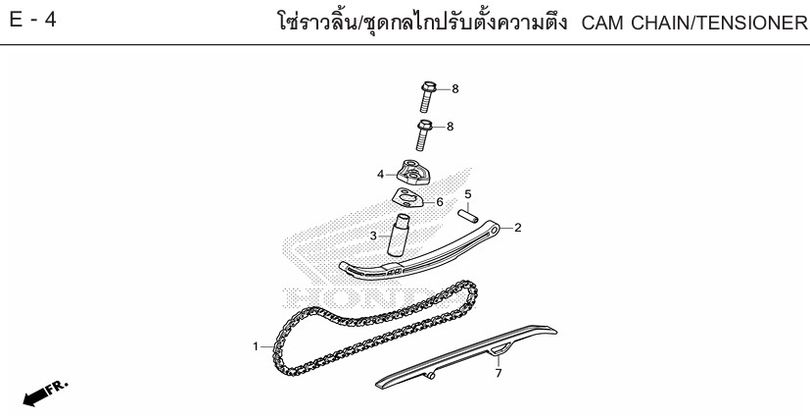

GIORNO 2025 · E-4 CAM CHAIN/TENSIONER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-4
- 1 CHAIN, CAM (DID SCZ-0404 SV-92LE) 14401-K97-T01Qty per bike: 1
- 2 SLIDER, CAM CHAIN 14511-K0R-V00Qty per bike: 1
- 3 TENSIONER 14520-K0R-V01Qty per bike: 1
- 4 CAP, TENSIONER 14521-K0R-V00Qty per bike: 1
- 5 PIN, CAM CHAIN SLIDER PIVOT 14531-KZR-600Qty per bike: 1
- 6 GASKET, TENSIONER (NICHIAS) 14560-K0R-V01Qty per bike: 1
- 7 RUBBER, CAM CHAIN 14611-K97-T00Qty per bike: 1
- 8 BOLT, FLANGE, 6x22 95701-06022-00Qty per bike: 2
