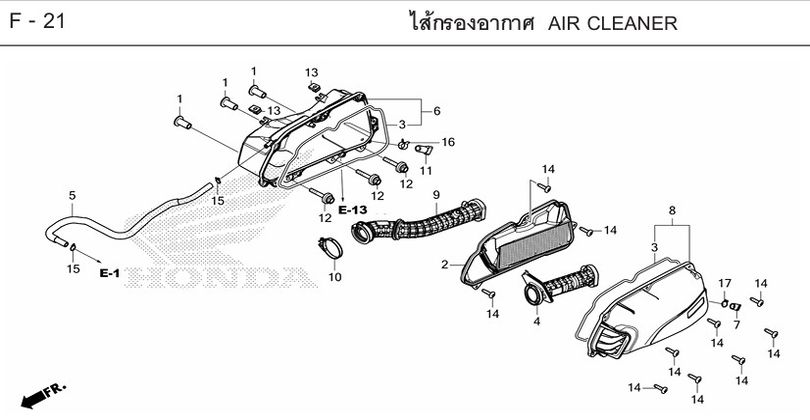

GIORNO 2025 · F-21 AIR CLEANER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-21
- 1 COLLAR, AIR CLEANER CASE 17208-K1A-N00Qty per bike: 3
- 2 ELEMENT, AIR CLEANER 17210-K3M-T00Qty per bike: 1
- 3 SEAL, AIR CLEANER ELEMENT 17213-KZR-600Qty per bike: 2
- 4 DUCT, AIR 17215-K2T-V00Qty per bike: 1
- 5 TUBE, BREATHER 17218-K2T-V00Qty per bike: 1
- 6 AIR CLEANER CASE SET 17225-K3M-T00Qty per bike: 1
- 7 PLUG, AIR VENT HOLE 17236-KVB-900Qty per bike: 1
- 8 AIR CLEANER CASE COVER SET 17245-K3M-T00Qty per bike: 1
- 9 NECK, AIR TUBE 17253-K3M-T00Qty per bike: 1
- 10 BAND, AIR TUBE (50) 17256-K1N-V00Qty per bike: 1
- 11 TUBE, AIR CLEANER CASE DRAIN 17261-K2T-V00Qty per bike: 1
- 12 BOLT, WASHER, 6x40 90141-K3M-T00Qty per bike: 3
- 13 NUT, CLIP, 5 mm 90677-KAN-T00Qty per bike: 2
- 14 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 10
- 15 CLIP, TUBE (B12.5) 95002-02130Qty per bike: 2
- 16 BAND, HOSE (D12) 95002-41200-08Qty per bike: 1
- 17 CLIP, TUBE (C12) 95002-80000Qty per bike: 1
