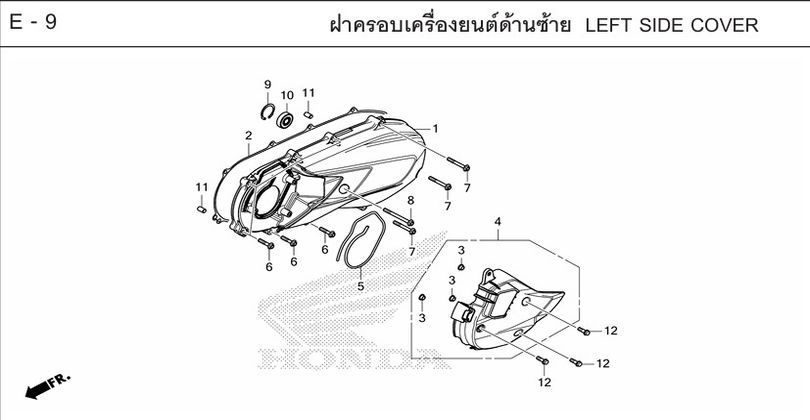

GIORNO 2025 · E-9 LEFT SIDE COVER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-9
- 1 COVER, LEFT CRANKCASE 11341-K2S-N00Qty per bike: 1
- 2 GASKET, LEFT CRANKCASE COVER (NICHIAS) 11395-K1N-V01Qty per bike: 1
- 3 COLLAR 19416-KEY-900Qty per bike: 3
- 4 AIR TRAP COVER SET, LEFT 19640-K2S-N00Qty per bike: 1
- 5 SEAL, LEFT AIR TRAP COVER 19649-K01-900Qty per bike: 1
- 6 BOLT, FLANGE, 6x28 (LNSH) 90004-K0R-V00Qty per bike: 6
- 7 BOLT, FLANGE, 6x40 90005-K0R-V00Qty per bike: 3
- 8 BOLT, FLANGE, 6x65 (LNSH) 90006-K0R-V00Qty per bike: 1
- 9 CLIP, INNER LOCK, 32 mm 90652-KVB-900Qty per bike: 1
- 10 BEARING, RADIAL BALL (6002UU) (NSK) 91005-K1Z-J10Qty per bike: 1
- 11 PIN, DOWEL, 8x14 94301-08140Qty per bike: 2
- 12 BOLT, FLANGE, 6x18 96001-06018-07Qty per bike: 3
