REBEL 300 2023 · E-13 CRANKCASE

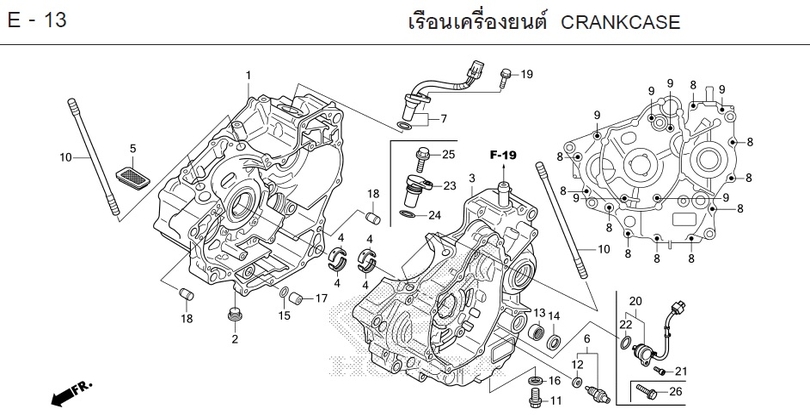

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-13
- 2 BOLT, SEALING, 16 mm 11107-KYJ-900Qty per bike: 1
- 3 CRANKCASE, LEFT 11200-K0A-EB0Qty per bike: 1
- 3 CRANKCASE SET, LEFT 11200-K33-D00Qty per bike: 1
- 4 BEARING, CRANKSHAFT SLIDE A (BLUE) 13312-K33-D01Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE B (BLACK) 13313-K33-D01Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE C (BROWN) 13314-K33-D01Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE D O.S. (RED) 13315-K33-305Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE E 13316-K33-305Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE F 13317-K33-305Qty per bike: 4
- 4 BEARING, CRANKSHAFT SLIDE G 13318-K33-305Qty per bike: 4
- 5 STRAINER, OIL FILTER 15421-KYJ-900Qty per bike: 1
- 6 SWITCH SET, NEUTRAL 35600-425-023Qty per bike: 1
- 7 SENSOR SET, VEHICLE SPEED 37700-K87-A01Qty per bike: 1
- 8 BOLT, FLANGE, 6x40 90014-KYJ-900Qty per bike: 10
- 9 BOLT, FLANGE, 6x70 90016-KYJ-900Qty per bike: 6
- 10 BOLT, STUD, 10x178 90032-K33-D00Qty per bike: 4
- 11 BOLT, DRAIN, 12 mm 90061-K0A-DB0Qty per bike: 1
- 11 BOLT, DRAIN, 12 mm 90061-KYJ-900Qty per bike: 1
- 12 WASHER, SEALING NEUTRAL SWITCH SET 90443-KR0-000Qty per bike: 1
- 13 BEARING, NEEDLE ROLLER, 14x20x12 91028-MGS-D21Qty per bike: 1
- 13 BEARING, NEEDLE ROLLER, 14x20x12 91108-KYJ-711Qty per bike: 1
- 14 OIL SEAL 14X22X5 91203-KSP-911Qty per bike: 1
- 15 O-RING, 11.8x1.9 91301-KYJ-710Qty per bike: 1
- 15 O-RING, 11.8x1.9 91301-KYJ-901Qty per bike: 1
- 16 WASHER, DRAIN BOLT, 12 mm 94109-12000Qty per bike: 1
- 17 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 1
- 18 PIN B, DOWEL, 8x14 94302-08140Qty per bike: 2
- 19 BOLT, FLANGE, 6x18 95701-06018-00Qty per bike: 1
- 20 SWITCH SET, GEARSHIFT 35759-K2Y-A01Qty per bike: 1
- 20 SWITCH SET, GEARSHIFT 35759-K87-A31Qty per bike: 1
- 21 BOLT, 6 mm 90011-MGP-000Qty per bike: 1
- 22 O-RING, 19.4X2.3 91305-K0N-D00Qty per bike: 1
- 22 O-RING, 16.5x2.5 91305-KC1-850Qty per bike: 1
- 23 CAP 11109-K0A-DB0Qty per bike: 1
- 24 O-RING, 17.8X2.4 91301-K0A-DB0Qty per bike: 1
- 25 BOLT, FLANGE, 6x20 95701-06020-00Qty per bike: 1
- 26 BOLT, FLANGE, 6x20 95702-06020-08Qty per bike: 1
