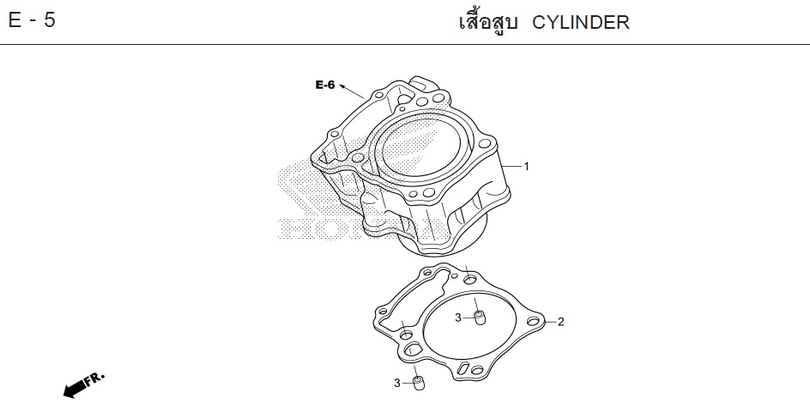

REBEL 300 2023 · E-5 CYLINDER
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-5
- 1 CYLINDER 12100-K0A-EB0Qty per bike: 1
- 1 CYLINDER 12100-K33-D00Qty per bike: 1
- 2 GASKET, CYLINDER 12191-K87-A30Qty per bike: 1
- 2 GASKET, CYLINDER 12191-KYJ-900Qty per bike: 1
- 3 PIN, DOWEL A, 12x16 94301-12160Qty per bike: 2
This catalogue is shared by: REBEL 300 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
