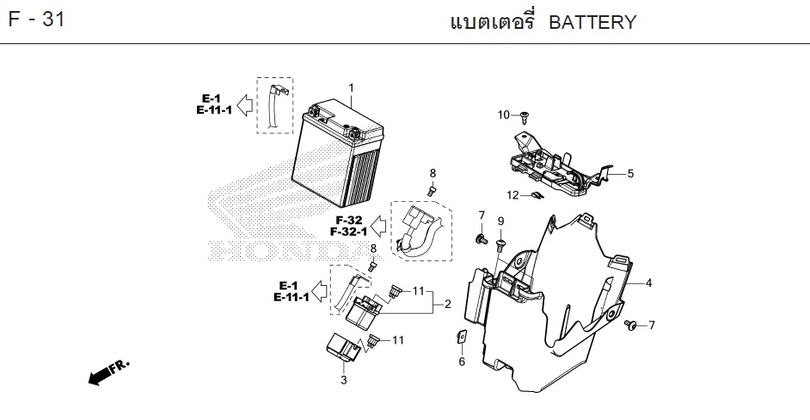

REBEL 300 2023 · F-31 BATTERY
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-31
- 1 BATTERY (FTZ8V) 31500-K2Y-T01Qty per bike: 1
- 1 BATTERY (YTZ8V) 31500-KZZ-J01Qty per bike: 1
- 2 STARTER RELAY SWITCH SET 35850-MT4-000Qty per bike: 1
- 2 STARTER RELAY SWITCH SET 35850-MT4-003Qty per bike: 1
- 3 RUBBER, STARTER RELAY SWITCH DAMPER 35856-MR5-000Qty per bike: 1
- 4 BOX, BATTERY A 50325-K87-A00Qty per bike: 1
- 5 LID, BATTERY 50326-K87-A00Qty per bike: 1
- 5 LID, BATTERY 50326-K87-A30Qty per bike: 1
- 6 NUT, SPECIAL, 6x7 61304-958-003Qty per bike: 1
- 7 SCREW, SPECIAL, 6x14 90111-K87-A00Qty per bike: 2
- 8 BOLT, 5x9 90111-MR5-000Qty per bike: 2
- 9 SCREW, SPECIAL, 6x14 90115-MGZ-J00Qty per bike: 2
- 10 CLIP, LOCK 90116-SP0-003Qty per bike: 2
- 11 FUSE, (30A) 98200-33000Qty per bike: 2
- 12 FUSE, MINI (30A) 98200-43000Qty per bike: 1
