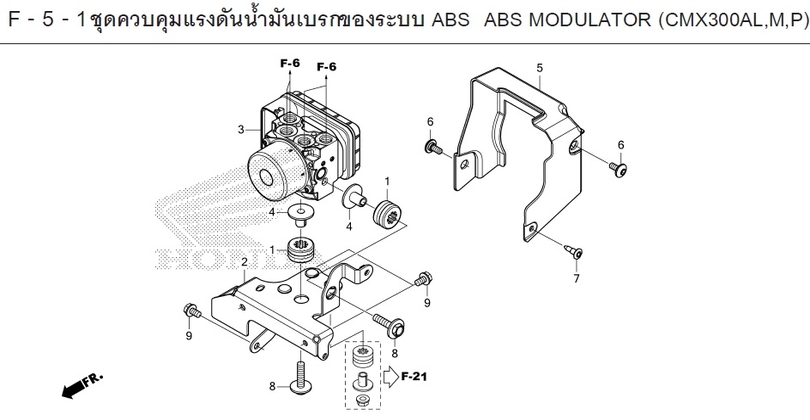

REBEL 300 2023 · F-5-1 ABS ABS MODULATOR
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-5-1
- 1 RUBBER B 33706-KW7-900Qty per bike: 2
- 2 PLATE, BRAKE PRESSURE CONTROL UNIT MOUNTING 50345-K87-A80Qty per bike: 1
- 3 ABS MODULATOR (BRAKE PRESSURE CONTROL) UNIT 57110-K2Y-A01Qty per bike: 1
- 3 ABS MODULATOR (BRAKE PRESSURE CONTROL) UNIT 57110-K87-T81Qty per bike: 1
- 4 COLLAR (BLACK) (FOR REAR) 61104-428-730Qty per bike: 2
- 5 COVER, BRAKE PRESSURE CONTROL UNIT 61410-K87-A80Qty per bike: 1
- 6 SCREW, SPECIAL, 6x14 90111-K87-A00Qty per bike: 2
- 7 CLIP, LOCK 90116-SP0-003Qty per bike: 1
- 8 BOLT, WASHER, 6x25 93404-06025-08Qty per bike: 2
- 9 BOLT, FLANGE, 6x10 95701-06010-00Qty per bike: 3
