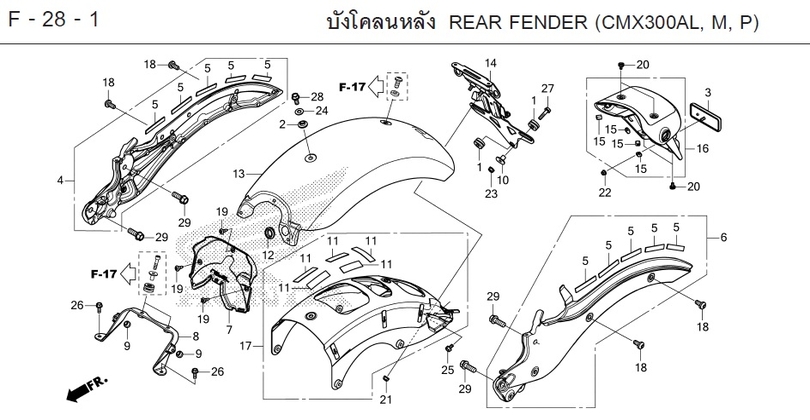

REBEL 300 2023 · F-28-1 28-1 REAR FENDER (CMX300AL, M, P)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-28-1
- 1 RUBBER 17245-107-010Qty per bike: 3
- 2 COLLAR 18422-K87-A00Qty per bike: 1
- 3 REFLECTOR 33741-KPL-902Qty per bike: 1
- 3 REFLECTOR (STANLEY) 33741-KWN-901Qty per bike: 1
- 4 COVER SET, RIGHT REAR #15 #20 (ALL COLORS) 50240-K87-A00ZAQty per bike: 1
- 5 RUBBER, REAR FRAME BODY 50242-K87-A00Qty per bike: 10
- 6 COVER SET, LEFT REAR #15 #20 (ALL COLORS) 50245-K87-A00ZAQty per bike: 1
- 7 BOX, BATTERY B 50327-K87-A30Qty per bike: 1
- 8 BRACKET, SEAT 50351-K87-A30Qty per bike: 1
- 9 RUBBER 50352-GS6-000Qty per bike: 2
- 10 COLLAR (WHITE) (FOR REAR) 61104-428-010Qty per bike: 2
- 11 RUBBER 80102-K87-A00Qty per bike: 5
- 12 RUBBER 80103-K87-A00Qty per bike: 1
- 13 FENDER ASSY, REAR (WL) (GRAY/BLACK) 80110-K2Y-A00ZAQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (BLACK) 80110-K2Y-A00ZFQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (BLACK) 80110-K87-A00ZAQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (GRAY/BLACK) 80110-K87-A00ZBQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (BLACK) 80110-K87-A00ZCQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (BLUE-BLACK) 80110-K87-A30ZAQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (BLUE-BLACK) 80110-MKG-T00ZAQty per bike: 1
- 13 FENDER ASSY, REAR (WL) (GRAY/BLACK) 80110-MKG-T00ZBQty per bike: 1
- 14 PLATE, TAILLIGHT MOUNTING A 80115-K87-A30Qty per bike: 1
- 15 RUBBER, MUFFLER 80119-MGE-300Qty per bike: 4
- 16 FENDER SET, REAR A 80120-K87-A30Qty per bike: 1
- 17 PAD, REAR FENDER 80130-K87-A30Qty per bike: 1
- 18 BOLT, 8x18 90108-K87-A00Qty per bike: 4
- 19 CLIP, LOCK 90116-SP0-003Qty per bike: 3
- 20 BOLT, SPECIAL, 5x10 90138-K87-A30Qty per bike: 4
- 21 NUT, U, 6 mm (FUJI SEIMITSU) 90301-KGH-901Qty per bike: 2
- 22 NUT, U, 5 mm (FUJI SEIMITSU) 90301-KWN-901Qty per bike: 1
- 23 NUT, FLANGE, 6 mm 94050-06000Qty per bike: 2
- 24 WASHER, 8 mm 94101-08700Qty per bike: 1
- 25 BOLT, FLANGE, 6x10 95701-06010-07Qty per bike: 1
- 26 BOLT, FLANGE, 6x16 95701-06016-07Qty per bike: 2
- 27 BOLT, FLANGE, 6x25 95701-06025-00Qty per bike: 2
- 28 BOLT, FLANGE, 8x18 95701-08018-07Qty per bike: 1
- 29 BOLT, FLANGE, 10x28 95701-10028-00Qty per bike: 4
