REBEL 300 2023 · F-19 AIR CLEANER

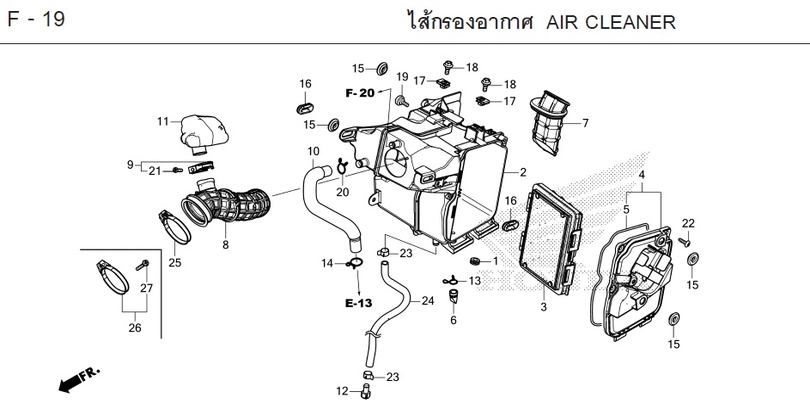

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-19
- 1 RUBBER A (8x16x6.6) 11344-MB0-000Qty per bike: 1
- 2 AIR CLEANER CASE 17210-K87-A00Qty per bike: 1
- 3 ELEMENT, AIR CLEANER 17220-KZZ-900Qty per bike: 1
- 3 ELEMENT, AIR CLEANER 17220-KZZ-J00Qty per bike: 1
- 4 AIR CLEANER CASE COVER SET 17230-K87-A00Qty per bike: 1
- 5 SEAL, AIR CLEANER CASE 17232-K87-A00Qty per bike: 1
- 6 TUBE, AIR CLEANER DRAIN 17234-KCW-871Qty per bike: 1
- 7 TUBE, AIR 17241-K87-A00Qty per bike: 1
- 8 NECK, AIR TUBE 17251-K87-A00Qty per bike: 1
- 9 BAND, MUFFLER (SILENCER) BOX (28) 17255-MCG-000Qty per bike: 1
- 10 TUBE, CRANKCASE SET BREATHER 17265-K87-A00Qty per bike: 1
- 11 BOX, MUFFLER (SILENCER) 17311-K87-A00Qty per bike: 1
- 12 CAP, DRAIN TUBE 17370-419-700Qty per bike: 1
- 13 CLIP, DRAIN TUBE 17371-174-670Qty per bike: 1
- 14 CLIP, TUBE 17724-102-700Qty per bike: 1
- 15 RUBBER, SIDE COVER 83551-376-000Qty per bike: 4
- 16 RUBBER, SIDE COVER A 83601-KVN-900Qty per bike: 2
- 16 RUBBER, SIDE COVER A 83601-MB0-000Qty per bike: 2
- 17 NUT, MOUNTING (6 mm) 84601-HC4-000Qty per bike: 2
- 18 BOLT, FLANGE, 6 mm 90109-KZZ-900Qty per bike: 2
- 19 SCREW, 6x13 90121-K87-A00Qty per bike: 1
- 20 CLIP, BREATHER TUBE LOCK, 16 mm 90646-657-000Qty per bike: 1
- 21 SCREW, 5x25 93500-05025-0GQty per bike: 1
- 22 SCREW, TAPPING, 5x20 93903-25480Qty per bike: 3
- 23 BAND, HOSE (D12) 95002-41200-08Qty per bike: 2
- 24 HOSE, RUBBER, 8x12x390 95003-23039-60Qty per bike: 1
- 25 BAND, AIR TUBE (56) 95018-56250Qty per bike: 1
- 26 BAND, AIR TUBE (56) 17235-MKH-D00Qty per bike: 1
- 27 SCREW, 4x35 93500-04035-0GQty per bike: 1
This catalogue is shared by: REBEL 300 2023. Quoted prices include purchasing service and shipping to Vietnam. Final price is confirmed by the shop when the deposit is received and may change with the exchange rate.
