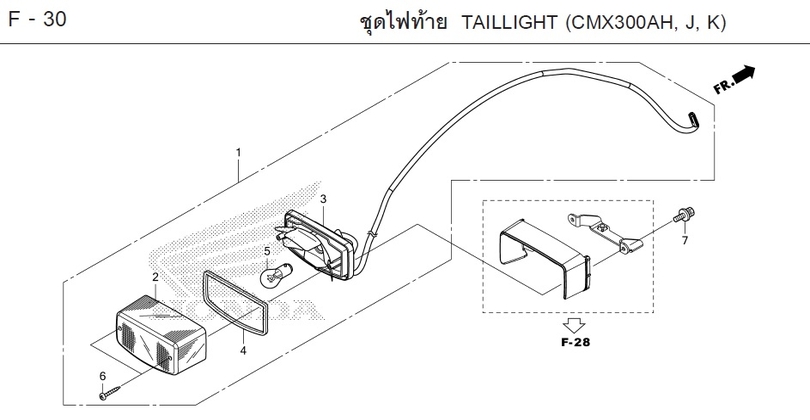

REBEL 300 2023 · F-30 TAILLIGHT (CMX300AH, J, K)
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-30
- 1 TAILLIGHT UNIT 33701-K87-J01Qty per bike: 1
- 2 LENS, TAILLIGHT 33702-KB7-013Qty per bike: 1
- 3 SOCKET SET, TAILLIGHT BULB 33703-K87-J01Qty per bike: 1
- 4 GASKET, TAILLIGHT LENS 33709-KB7-003Qty per bike: 1
- 5 BULB, TAILLIGHT AND STOP LIGHT 34906-447-711Qty per bike: 1
- 6 SCREW, TAPPING, 4x40 90105-GAM-000Qty per bike: 2
- 7 BOLT, WASHER, 5x16 93402-05016-08Qty per bike: 2
