REBEL 300 2023 · F-14 REAR BRAKE CALIPER

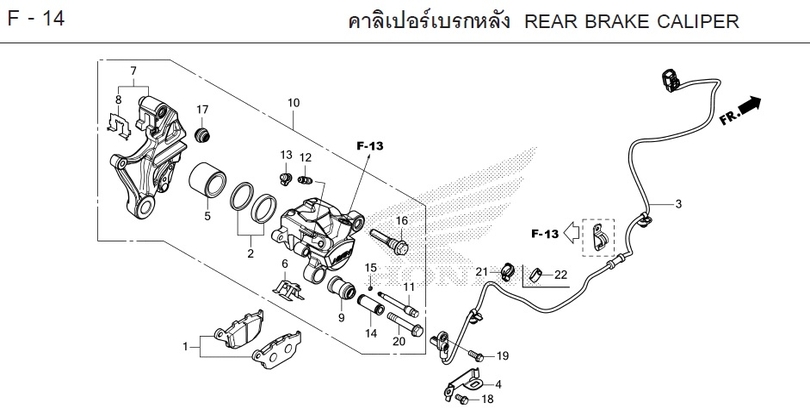

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-14
- 1 SHOE/PAD SET, REAR BRAKE 06435-MGZ-J01Qty per bike: 1
- 1 SHOE/PAD SET, REAR BRAKE 06435-MGZ-J02Qty per bike: 1
- 2 CALIPER PISTON SEAL SET 06451-443-405Qty per bike: 1
- 3 SENSOR, REAR WHEEL SPEED 38510-K87-L51Qty per bike: 1
- 4 PLATE, REAR WHEEL SPEED SENSOR WIRE MOUNTING 38515-K87-A00Qty per bike: 1
- 5 PISTON, CALIPER 43107-KT7-761Qty per bike: 1
- 6 SPRING, BRAKE PAD 43108-MBB-006Qty per bike: 1
- 7 CALIPER BRACKET SET, REAR BRAKE 43110-K87-L51Qty per bike: 1
- 8 SPRING, BRAKE PAD 43112-MFF-D01Qty per bike: 1
- 9 BUSH, RUBBER 43132-KT7-761Qty per bike: 1
- 10 CALIPER SET, REAR BRAKE 43150-K87-L51Qty per bike: 1
- 11 PIN, BRAKE PAD 43215-KZ4-J41Qty per bike: 1
- 12 SCREW, AIR BLEED (NISSIN) 43352-568-003Qty per bike: 1
- 13 CAP, AIR BLEED SCREW 43353-461-771Qty per bike: 1
- 14 COLLAR 45111-MA3-006Qty per bike: 1
- 15 WASHER, LOCK 45111-MAJ-G41Qty per bike: 1
- 16 BOLT, BRAKE PAD PIN 45131-MN9-006Qty per bike: 1
- 17 BOOT, DUST B 45133-MA3-006Qty per bike: 1
- 18 BOLT, FLANGE, 6x10 90013-GHB-600Qty per bike: 1
- 19 BOLT, FLANGE, 6x16 90116-MKA-D80Qty per bike: 1
- 19 BOLT, FLANGE, 6x16 90116-MKP-DN0Qty per bike: 1
- 20 BOLT, FLANGE, 8x49 90180-MN8-006Qty per bike: 1
- 21 CLIP, CABLE, 14 mm 90690-MCA-003Qty per bike: 1
- 22 STRAP (50) 90652-MKH-D20Qty per bike: 1
