REBEL 300 2023 · F-17 SEAT

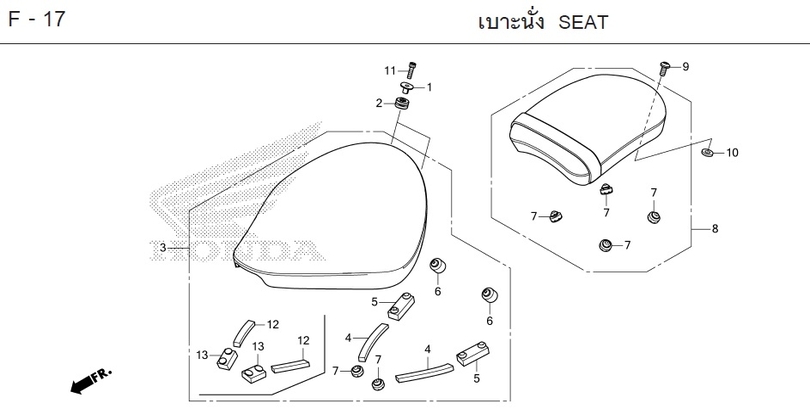

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-17
- 1 COLLAR (WHITE) (FOR REAR) 61104-428-010Qty per bike: 2
- 1 COLLAR (BLACK) (FOR REAR) 61104-428-730Qty per bike: 2
- 1 COLLAR, 19x6.2x13.5 90502-KS5-000Qty per bike: 2
- 2 RUBBER, HEADLIGHT STAY 61304-415-000Qty per bike: 2
- 3 SEAT ASSY, FRONT 77100-K87-A00Qty per bike: 1
- 3 SEAT ASSY, FRONT (ALL COLORS) 77100-K87-A30ZAQty per bike: 1
- 4 RUBBER, SPONGE SEAT 77101-K87-A00Qty per bike: 2
- 5 RUBBER B, SEAT 77205-286-000Qty per bike: 2
- 5 RUBBER, SEAT 77205-MFE-670Qty per bike: 2
- 6 RUBBER, DAMPER MOUNTING 77206-KPK-900Qty per bike: 2
- 7 RUBBER C, SEAT MOUNTING 77215-KW7-900Qty per bike: 6
- 8 SEAT ASSY, REAR 77300-K87-A00Qty per bike: 1
- 8 SEAT, REAR (ALL COLORS) 77300-K87-A30ZCQty per bike: 1
- 9 BOLT, SPECIAL, 8x18 90120-K87-A00Qty per bike: 1
- 10 WASHER, 8 mm 90122-K87-A00Qty per bike: 1
- 11 BOLT, 6x22 96600-06022-07Qty per bike: 2
- 12 RUBBER, SPONGE SEAT 77101-K87-A30Qty per bike: 2
- 13 RUBBER, SEAT 77205-KPP-T00Qty per bike: 2
