REBEL 300 2023 · F-23 PEDAL

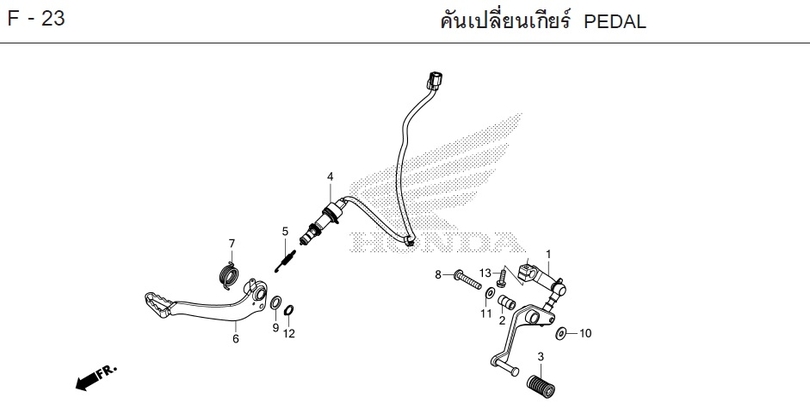

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-23
- 1 GEARSHIFT PEDAL ASSY 24705-K87-A00Qty per bike: 1
- 2 COLLAR, GEARSHIFT PEDAL PIVOT 24731-K87-A00Qty per bike: 1
- 3 RUBBER, GEARSHIFT PEDAL 24781-KR3-770Qty per bike: 1
- 4 SWITCH SET, REAR STOP LIGHT 35350-K87-A01Qty per bike: 1
- 5 SPRING, REAR STOP SWITCH 35357-K26-900Qty per bike: 1
- 6 LEVER, REAR BRAKE 46501-K87-A00Qty per bike: 1
- 6 LEVER, REAR BRAKE 46501-K87-A30Qty per bike: 1
- 7 SPRING, REAR BRAKE LEVER RETURN 46514-K87-A00Qty per bike: 1
- 8 BOLT, SPECIAL, 8x45 90110-K87-A00Qty per bike: 1
- 9 WASHER, 14 mm 90451-GBL-870Qty per bike: 1
- 10 WASHER, 8.5x20 90526-K87-A00Qty per bike: 1
- 11 WASHER, 8 mm 94101-08000Qty per bike: 1
- 12 CLIP, OUTER LOCK, 14 mm 94511-14000Qty per bike: 1
- 13 BOLT, FLANGE, 6x20 95701-06020-07Qty per bike: 1
