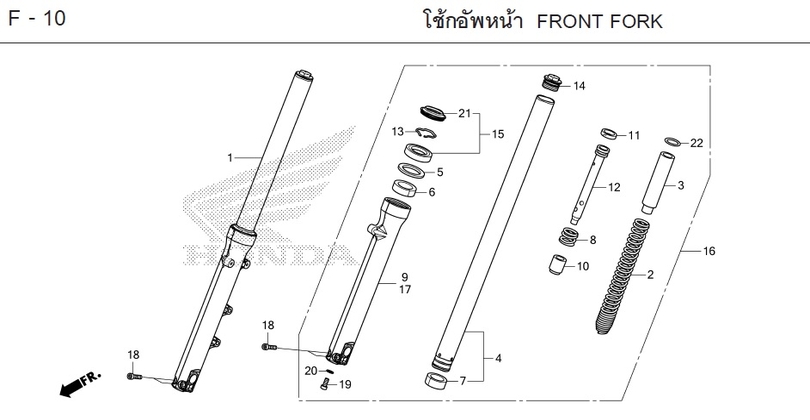

REBEL 300 2023 · F-10 FRONT FORK

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page F-10

1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K87-A01Qty per bike: 1
1 FRONT SHOCK ABSORBER SET, RIGHT 51400-K87-A31Qty per bike: 1
2 SPRING, FRONT FORK 51401-K87-A01Qty per bike: 2
2 SPRING, FRONT FORK 51401-K87-A31Qty per bike: 2
3 COLLAR, SPRING 51402-K87-A31Qty per bike: 2
3 COLLAR, SPRING 51402-MGZ-J01Qty per bike: 2
4 FRONT SHOCK ABSORBER SHAFT SET 51410-K87-A01Qty per bike: 2
4 FRONT SHOCK ABSORBER SHAFT SET 51410-K87-A31Qty per bike: 2
5 WASHER, SEAL 51412-MB4-003Qty per bike: 2
6 BUSH, FRONT FORK TUBE 51414-MFJ-A51Qty per bike: 2
7 BUSH, FRONT FORK TUBE 51415-MFJ-A51Qty per bike: 2
8 SPRING, FORK PISTON 51416-MM8-881Qty per bike: 2
9 TUBE, RIGHT FRONT FORK (OUTER) 51420-K87-A01Qty per bike: 1
9 TUBE, RIGHT FRONT FORK (OUTER) 51420-K87-A31Qty per bike: 1
10 BUSH, OIL PROOF 51432-MV9-003Qty per bike: 2
11 RING, FORK PISTON 51437-MM5-003Qty per bike: 2
12 PISTON, FORK 51440-K87-A01Qty per bike: 2
12 PISTON, FORK 51440-K87-A31Qty per bike: 2
13 RING, OIL SEAL STOPPER 51447-KA4-711Qty per bike: 2
14 BOLT, FRONT FORK CAP 51454-MM9-671Qty per bike: 2
15 SEAL SET, FRONT FORK TUBE 51490-MKA-D81Qty per bike: 2
15 SEAL SET, FRONT FORK TUBE 51490-MKL-D81Qty per bike: 2
16 FRONT SHOCK ABSORBER SET, LEFT 51500-K87-A01Qty per bike: 1
16 FRONT SHOCK ABSORBER SET, LEFT 51500-K87-A31Qty per bike: 1
17 TUBE, LEFT FRONT FORK (OUTER) 51520-K87-A01Qty per bike: 1
17 TUBE, LEFT FRONT FORK (OUTER) 51520-K87-A31Qty per bike: 1
18 BOLT, 8x32 90102-K87-A00Qty per bike: 4
19 BOLT, 8 mm 90116-KV3-701Qty per bike: 2
20 WASHER, SPECIAL, 8 mm (SHOWA) 90544-283-000Qty per bike: 2
21 SEAL, DUST 91251-MKA-D81Qty per bike: 2
21 SEAL, DUST 91251-MKL-D81Qty per bike: 2
22 O-RING, 33.2x2.4 91356-KF0-003Qty per bike: 2
