REBEL 300 2023 · E-7 CLUTCH (CMX300AH, J, K)

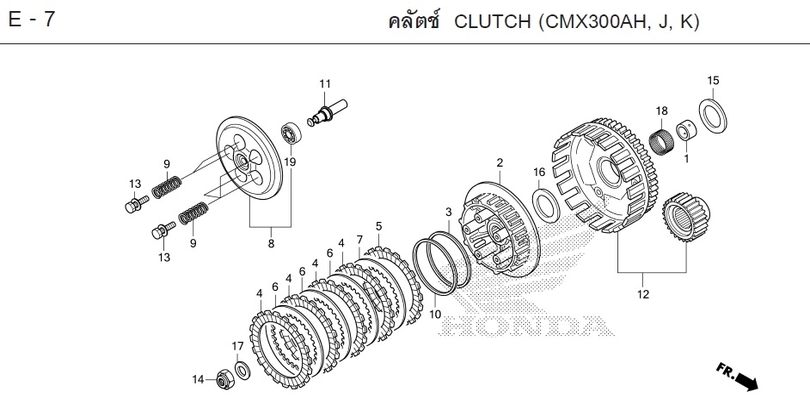

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page E-7
- 1 COLLAR, CLUTCH OUTER A (WHITE) 22116-K33-D00Qty per bike: 1
- 1 COLLAR, CLUTCH OUTER ( (BLUE) 22117-K33-D00Qty per bike: 1
- 2 CLUTCH CENTER 22121-KZZ-901Qty per bike: 1
- 3 WASHER, SPRING 22125-KZZ-901Qty per bike: 1
- 4 PLATE, CLUTCH FRICTION 22201-MGZ-J01Qty per bike: 4
- 5 PLATE, CLUTCH FRICTION B 22202-KZZ-901Qty per bike: 1
- 6 PLATE, CLUTCH 22321-KYJ-902Qty per bike: 3
- 7 PLATE, CLUTCH B 22322-KZZ-901Qty per bike: 1
- 8 PLATE SET, CLUTCH PRESSURE 22350-KYJ-902Qty per bike: 1
- 9 SPRING, CLUTCH 22401-K33-D01Qty per bike: 5
- 10 RING, SPRING 22402-KZZ-902Qty per bike: 1
- 11 SHAFT, CLUTCH LIFTER 22847-KZZ-900Qty per bike: 1
- 12 CLUTCH OUTER HOUSING WITH DRIVE GEAR SET 23121-K33-305Qty per bike: 1
- 13 BOLT, 6x1.0 90050-KYJ-902Qty per bike: 5
- 14 NUT, SPECIAL, 16 mm 90201-KYJ-900Qty per bike: 1
- 15 WASHER, 20x40x2 90404-KVK-900Qty per bike: 1
- 16 WASHER, 20x40x2 90404-KYJ-902Qty per bike: 1
- 17 WASHER, 16 mm 90434-KPS-900Qty per bike: 1
- 18 BEARING, NEEDLE ROLLER, 28x33x16.8 91012-KYJ-901Qty per bike: 1
- 19 BEARING, RADIAL BALL, 6001 96100-60010-00Qty per bike: 1
