REBEL 300 2023 · F-24 STEP

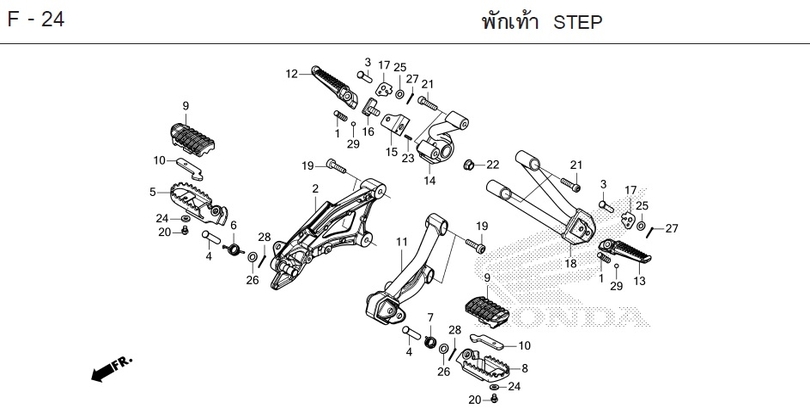

Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.

All parts on page F-24

1 SPRING, KICK STARTER 28333-300-000Qty per bike: 2
2 STAY, RIGHT FRONT STEP 50600-K87-A00Qty per bike: 1
3 PIN, REAR STEP 50603-GS9-010Qty per bike: 2
4 PIN, FRONT STEP 50603-K87-A00Qty per bike: 2
5 SHAFT, RIGHT FRONT STEP 50616-K87-A00Qty per bike: 1
5 SHAFT, RIGHT FRONT STEP 50616-K87-A30Qty per bike: 1
6 SPRING, RIGHT FRONT STEP RETURN 50617-K87-A00Qty per bike: 1
7 SPRING, LEFT FRONT STEP RETURN 50618-K87-A00Qty per bike: 1
8 SHAFT, LEFT FRONT STEP 50642-K87-A00Qty per bike: 1
8 SHAFT, LEFT FRONT STEP 50642-K87-A30Qty per bike: 1
9 RUBBER, FRONT STEP 50661-K87-A00Qty per bike: 2
10 PLATE, FRONT STEP SHAFT MOUNTING 50662-K87-A00Qty per bike: 2
11 STAY, LEFT FRONT STEP 50700-K87-A00Qty per bike: 1
12 STEP, RIGHT REAR 50711-MGS-D30Qty per bike: 1
13 STEP, LEFT REAR 50712-MGS-D30Qty per bike: 1
14 STAY, RIGHT REAR STEP 50715-K2Y-A00Qty per bike: 1
14 STAY, RIGHT REAR STEP 50715-K87-A00Qty per bike: 1
15 PLATE, RIGHT REAR STEP STAY MOUNTING 50716-K87-A00Qty per bike: 1
16 BOLT, LOCK, RIGHT REAR STEP STAY MOUNTING PLATE 50717-K87-A00Qty per bike: 1
17 WASHER, REAR STEP SHAFT 50718-MN8-000Qty per bike: 2
18 STAY, LEFT REAR STEP 50725-K2Y-J00Qty per bike: 1
18 STAY, LEFT REAR STEP 50725-K87-A00Qty per bike: 1
19 BOLT, 8x32 90116-K87-A00Qty per bike: 4
20 BOLT, CAP, 6x8 90118-K87-A00Qty per bike: 2
21 BOLT, 8x32 90155-K87-A00Qty per bike: 4
22 NUT, U, 10 mm (FUJI SEIMITSU) 90304-KGH-901Qty per bike: 1
23 PIN, SPRING, 3x8 90751-K87-A00Qty per bike: 1
24 WASHER, 6 mm 94101-06700Qty per bike: 2
25 WASHER, 8 mm 94102-08000Qty per bike: 2
26 WASHER, 10 mm 94102-10000Qty per bike: 2
27 PIN, COTTER, 2.0x15 94201-20150Qty per bike: 2
27 PIN, COTTER, 2.0x15 94201-20151Qty per bike: 2
28 PIN, COTTER, 2.0x18 94201-20180Qty per bike: 2
28 PIN, COTTER, 2.0x18 94201-20181Qty per bike: 2
29 BALL, #8 (1/4) 96211-08000Qty per bike: 2
