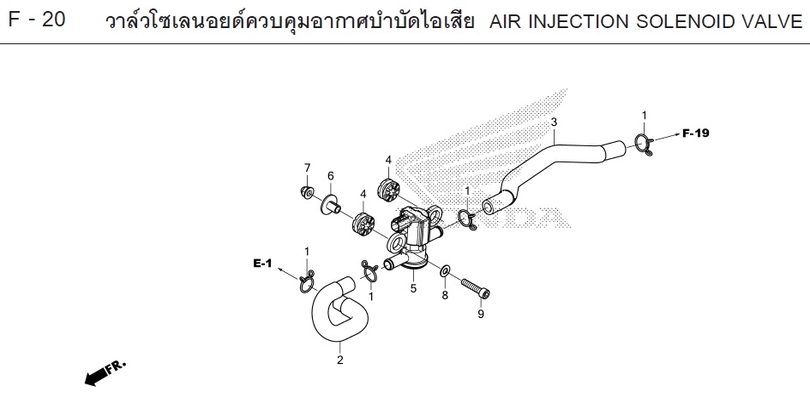

REBEL 300 2023 · F-20 AIR INJECTION SOLENOID VALVE
Tap a number on the diagram to see the parts. Swipe sideways to see the full diagram.
All parts on page F-20
- 1 CLIP, DRAIN TUBE 15772-551-000Qty per bike: 4
- 2 TUBE, EXHAUST AIR INDUCTION CONTROL A 18651-K87-A00Qty per bike: 1
- 3 TUBE, EXHAUST AIR INDUCTION CONTROL B 18652-K87-A00Qty per bike: 1
- 4 RUBBER 33115-KVK-900Qty per bike: 2
- 5 SOLENOID VALVE SET, EMISSION CONTROL 36450-KVK-902Qty per bike: 1
- 6 COLLAR (WHITE) (FOR REAR) 61104-428-010Qty per bike: 1
- 6 COLLAR (BLACK) (FOR REAR) 61104-428-730Qty per bike: 1
- 7 NUT, CAP, 6 mm 90202-KCW-870Qty per bike: 1
- 8 WASHER, 6 mm 94101-06800Qty per bike: 1
- 9 BOLT, 6x28 96600-06028-08Qty per bike: 1
